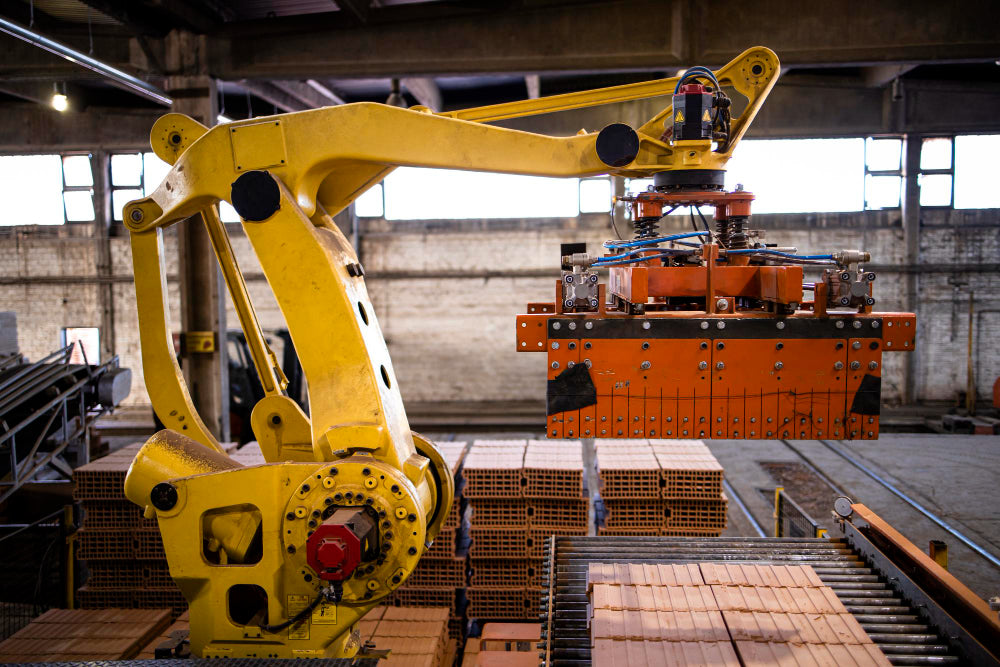

A Guide To Maintaining Thin Section Bearings In Robotic Arms

Robotic arms rely on compact components to perform precise movements through thousands of operating cycles. Effective bearing maintenance helps thin-section bearings maintain proper lubrication, alignment and cleanliness under demanding conditions. Their compact construction saves valuable space, but contamination, incorrect mounting and lubricant problems can quickly affect performance.

Next Point Bearing Group, LLC serves customers from its Santa Clarita, California, facility and distributes precision bearing products throughout the United States.

Build A Maintenance Schedule Around Real Operating Conditions

A fixed maintenance calendar can provide a useful starting point, but service intervals should reflect how the robotic arm actually operates. Operating speed, payload, working hours, temperature, contamination and movement patterns can all influence bearing wear and condition.

Start with maintenance recommendations from the robot and bearing manufacturers, then adjust inspection intervals based on actual operating data. During each inspection, record service dates, lubricant condition, vibration levels, operating temperature, noise and joint play. Comparing these measurements over time can help identify gradual changes before they become major failures.

Kaydon recommends maintenance schedules that account for operating conditions, limit foreign-material entry and maintain sufficient lubrication.

Keep Contaminants Away From Thin Section Bearings

Dust, metal particles, fibers, coolant and other contaminants can damage raceways and rolling elements. Even small amounts of debris can affect bearing performance when components operate through repeated precision movements.

Before opening a robotic joint or installing a replacement bearing, clean the surrounding work area and prepare the necessary tools. Keep exposed components protected and avoid placing unpackaged bearings on contaminated surfaces.

NSK recommends keeping bearings in their original packaging until they are ready for installation and inspecting related components before mounting. Maintaining clean handling practices reduces the risk of contaminants entering the lubricant or reaching critical contact surfaces.

Choose Lubrication For The Specific Robotic Joint

Lubricant selection should reflect the bearing design and the conditions within the robotic joint. Speed, load, temperature, seals and environmental exposure can all affect the appropriate grease or oil.

A high-speed wrist axis may require different lubricant characteristics from a slower base joint carrying heavier loads. Maintenance teams should follow the bearing manufacturer's specifications rather than selecting grease based solely on previous applications.

Relubrication intervals should also reflect actual operating conditions. Kaydon recommends introducing fresh oil or grease frequently enough to maintain effective lubrication and help remove foreign material from the bearing environment.

Watch For Noise, Heat, Vibration, And Rough Motion

Changes in bearing behavior can appear before a robotic joint develops an obvious accuracy problem or stops operating. New clicking, grinding, humming or rough sounds can indicate a change in joint condition.

Temperature and vibration should also be compared against established operating baselines. An increase under similar workloads may indicate developing friction, misalignment, contamination or component wear.

However, bearing problems are not the only possible source of these symptoms. Motors, gearboxes, couplings, fasteners and other joint components can produce similar changes. Inspect the complete assembly before identifying the bearing as the cause.

Routine maintenance should include checks for abnormal noise, overheating, vibration, contamination and alignment changes.

Inspect Mounting Fits And Alignment With Care

Thin-section bearings have narrower rings than many conventional bearings with comparable diameters, making mounting geometry particularly important. Housing distortion, incorrect fits, damaged shoulders or uneven clamping can alter bearing clearance, torque and running accuracy.

Whenever maintenance exposes the bearing area, inspect shaft seats, housing bores, shoulders, clamp rings and fasteners. Check the surrounding components for signs of wear, distortion or damage.

Kaydon advises applying press force only to the bearing ring with the interference fit rather than transferring force through the rolling elements. Its guidance also notes that increased preload can raise stiffness while increasing friction torque.

Protect Seals, Shields, And Lubricated Surfaces

Seals and shields help retain lubricant and prevent contaminants from reaching internal bearing surfaces. Damage to these components during cleaning or installation can reduce their effectiveness.

Inspect seals and shields for tears, deformation, dents, looseness or lubricant leakage before returning the robotic joint to operation. Maintenance personnel should also avoid exposing bearing components to unsuitable cleaning chemicals or excessive mechanical force.

For prelubricated bearings, follow the manufacturer's handling instructions carefully. NSK advises mounting prelubricated bearings without cleaning them beforehand to preserve their intended lubricant condition. Manufacturer guidance should also be followed before using solvents, replacing grease or opening sealed bearing assemblies.

Replace Damaged Bearings Before Problems Spread

Maintenance cannot return every worn bearing to acceptable condition. Corrosion, deep raceway damage, persistent roughness, abnormal clearance, or serious seal damage may point toward replacement. Continuing to operate a damaged bearing can place unwanted loads on shafts, housings, gears, and other joint components. Record the correct part number, precision class, lubricant, clearance, and special preparation when replacing a bearing.

Our extensive inventory includes miniature precision bearings and many industrial bearing options for maintenance, prototype, and production needs.

Use Specialized Services When The Application Needs Them

Some robotic systems need controlled cleaning, inspection, relubrication, packaging, or kitting before installation. We operate an ISO 6 Class 1000 clean room and maintain ISO 9001:2015 certification at Next Point Bearing Group, LLC. Our clean room team handles cleaning, inspection, relubrication, custom kitting, bar-code labeling, custom packaging, and repackaging. These services can help customers manage bearing preparation for sensitive robotics and automation projects. Our nationwide distribution network also helps customers source bearings without limiting service to Southern California.

Check Shafts And Housings During Bearing Service

A new bearing cannot correct a worn shaft, damaged groove, or poorly finished housing surface. Maintenance gives technicians a good opportunity to inspect seats, shoulders, bores, grooves, and related mounting features. Our machine shop handles CNC machining, drilling, tapping, milling, OD turning, boring, chamfering, snap-ring grooving, and linear shafting.

We can also handle bearing duplexing for suitable applications that call for matched bearing arrangements. Combining bearing sourcing with related machining can simplify purchasing and help teams address worn surrounding components.

Keep Your Robotic Arms Ready For Precise Motion

Strong bearing maintenance in robotics starts with clean handling, correct lubrication, careful mounting, regular inspection, and accurate service records. Thin section bearings reward careful attention because small changes in fit, contamination, or lubricant condition can affect joint movement.

We can help you source precision bearings and coordinate clean room or machine shop services for your application. Our experienced sales team works with customers in Santa Clarita, across California, and throughout the country.

Call us, submit a contact form, request a quote, or shop online for your next robotics maintenance project.
