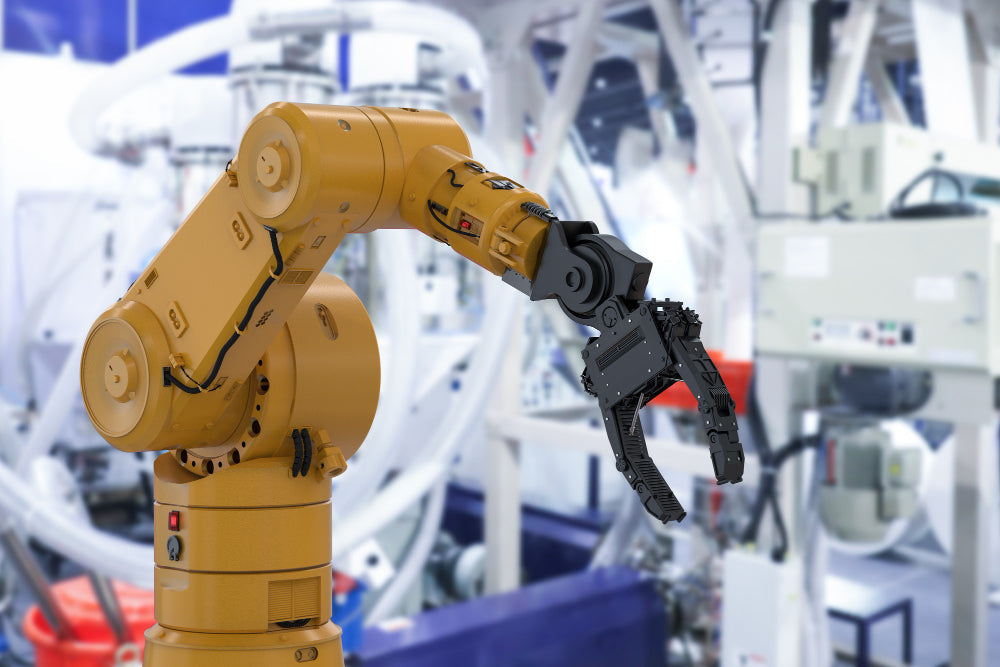

7 Key Considerations In Robot Joint Bearing Design

Robotic joints must handle changing forces while maintaining precise, repeatable movement. A properly selected bearing helps control friction, internal play and unwanted deflection as the joint rotates.

Bearing design can also influence motor requirements, joint dimensions, positioning accuracy and service life. Careful selection should therefore consider the complete joint assembly rather than a single bearing specification.

Match The Bearing To Joint Loads

Each robotic joint experiences its own combination of radial, axial and moment loads. Engineers should identify these forces before selecting a bearing type or size. Larger shoulder or base joints may experience substantial moment loads, while wrist joints, grippers and compact actuators may place greater emphasis on low weight, compact dimensions and fast response.

Crossed roller bearings can accommodate radial, axial and moment loads within a compact arrangement. Their rollers are positioned at alternating right angles, allowing the bearing to handle forces from multiple directions. Thin-section angular contact ball bearings can also suit applications that require rigidity while keeping rotational torque relatively low.

The bearing configuration should reflect the actual force profile of the joint, including payload, acceleration, deceleration and operating orientation.

Control Rigidity And Internal Clearance

Joint rigidity has a direct relationship with positioning performance. Excessive movement within a bearing can allow the output shaft or robotic arm to shift from its intended position. The effect can become more pronounced at the end of a long robotic arm because small movements at the joint can translate into larger positional errors at the tool.

Engineers should evaluate internal clearance, preload, shaft fit, housing fit and overall structural stiffness together.

Preload can reduce internal play and increase bearing rigidity when an application requires tighter motion control. However, excessive preload can increase friction, heat generation and operating torque. The appropriate level depends on the bearing design, load, speed and duty cycle.

Balance Low Torque With High Accuracy

Bearings work alongside motors, gearboxes and encoders to control robotic movement. Excessive bearing torque increases the force required from the motor and can affect energy consumption. Torque variation can also interfere with smooth, low-speed movement during precision positioning.

Thin-section angular contact ball bearings can combine relatively low rotational torque with useful moment stiffness. These characteristics can make them suitable for direct-drive joints, compact rotary axes and precision automation equipment.

Bearing selection should account for starting torque, running torque, speed, stiffness and load capacity instead of focusing on a single performance metric. The goal is to achieve the required accuracy without creating unnecessary resistance within the joint.

Plan Around Space And Weight Limits

Robotic joints often have limited internal space. Motors, reducers, encoders, brakes, wiring and structural components may all need to fit within the same housing. A compact bearing can leave additional room for these components or help reduce the overall size of the joint.

Bearing weight also matters. Reducing mass can lower rotational inertia, allowing the motor to accelerate and decelerate the joint more efficiently.

Thin-section bearings are useful for many space-constrained designs because they maintain a relatively narrow cross section compared with their bore size. Crossed roller bearings can also combine multiple load capabilities in a single bearing, potentially simplifying certain joint configurations.

Reducing bearing dimensions should not come at the expense of required stiffness or load capacity. Shaft diameter, housing dimensions, mounting features and structural rigidity all need to remain compatible with the smaller design.

Choose Lubrication For The Operating Environment

Lubrication affects friction, wear, heat, noise, and bearing life. A fast-moving industrial robot may need different grease characteristics than a slow inspection platform or medical automation system. Temperature, speed, load, contamination, and maintenance intervals should guide lubricant selection. Designers should also consider how seals and shields change grease retention and rotational resistance.

We operate an ISO 6 Class 1000 clean room in Santa Clarita, California, for controlled bearing services. Our clean room capabilities include cleaning, inspection, relubrication, custom packaging, barcode labeling, and kitting.

These services can help customers prepare bearings for applications with specific cleanliness or lubricant requirements. They also let teams source bearings and value-added handling through one experienced supplier.

Review Mounting Accuracy And Machined Fits

Even a high-quality bearing can perform poorly when the surrounding parts do not hold it correctly. Shaft roundness, housing geometry, shoulder squareness, and surface finish can affect alignment and running accuracy.

Incorrect fits can create unwanted clearance, excessive preload, distortion, or early wear. Engineers should set machining tolerances around the selected bearing and expected thermal conditions.

Our machine shop services can help customers with precision work related to bearing and shaft assemblies. We offer CNC machining, linear shafting, drilling, tapping, snap-ring grooving, milling, OD turning, boring, chamfering, and bearing duplexing.

Our machining capabilities can hold tight tolerances for suitable projects, including work down to ±0.001 inch. This in-house capability helps customers coordinate bearing sourcing with related component preparation.

Consider Life, Maintenance, And Supply Continuity

Robot joints often operate through repeated acceleration, deceleration and directional changes. Shock loads, contamination, temperature variations and changing speeds can influence bearing life over time. Service-life calculations should reflect realistic operating loads and duty cycles rather than ideal conditions.

Maintenance planning is also important. Inspection and lubrication intervals should correspond to the robot's operating environment and expected usage.

Supply continuity deserves attention as well. A specialized bearing that becomes difficult to source can delay prototype testing, scheduled maintenance or production. Maintaining access to suitable replacement parts can make it easier to respond to unexpected failures or design changes.

Next Point Bearing Group, LLC maintains a large inventory of miniature precision bearings, standard industrial bearings and motion-related products. Distribution reaches customers throughout the United States, with sourcing assistance available for specialized and less common requirements.

Work With A Bearing Supplier That Understands Robotics

Choosing the right robot joint bearing starts with a clear picture of load, accuracy, stiffness, torque, space, lubrication, and mounting conditions. The best choice should fit the entire joint rather than one isolated specification. We combine precision bearing inventory, an experienced sales team, an ISO 9001:2015 certified quality system, clean room services, and machine shop capabilities.
