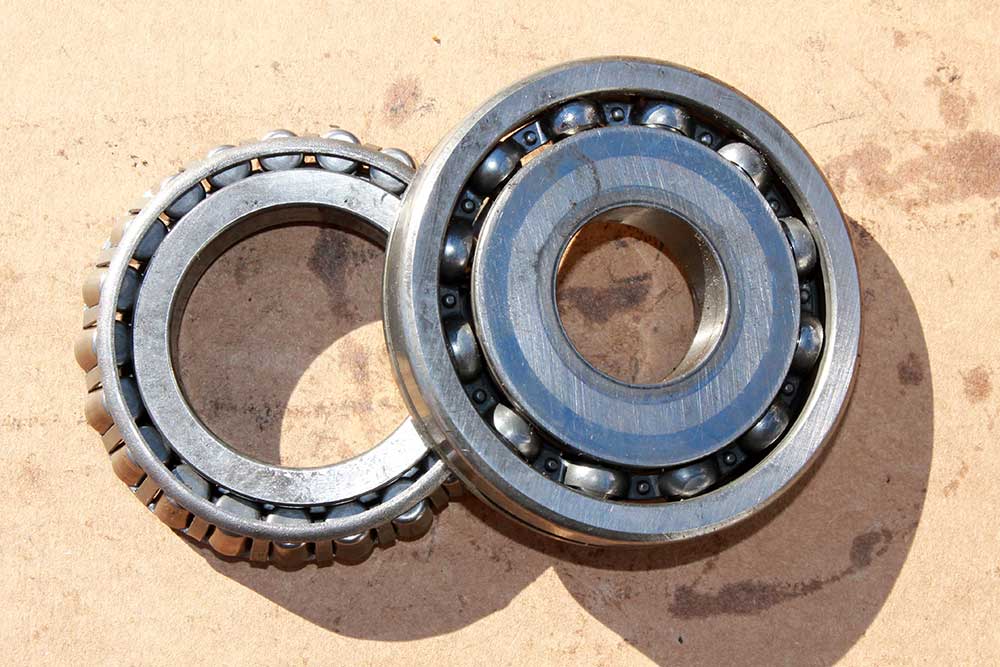

15 Ball Bearing Types And Their Applications

A ball bearing is a mechanical component designed to reduce friction between two moving parts. Using balls to maintain a separation between the bearing surfaces minimizes the contact area, which reduces friction and wear. Ball bearings are ideal for applications where rotational or linear motion is required, making them an important component in machines like motors, wheels, and pumps.

Deep Groove Ball Bearings

Deep groove ball bearings are one of the most versatile and widely used types of ball bearings. Their design features deep, continuous raceways, allowing them to effectively handle both radial and axial loads. This unique design makes them ideal for various applications, offering smooth and low-friction rotation. Here’s a breakdown of their key characteristics:

• Radial and Axial Load Handling: Deep groove ball bearings are designed to manage both radial and axial loads simultaneously. This ability enables them to handle forces acting perpendicular to the shaft (radial loads) and along the shaft (axial loads). This versatility allows for the smooth operation of machines under diverse loading conditions, ensuring efficient performance in various industries.
• Common Applications: Deep groove ball bearings are used in a wide range of applications due to their adaptability and durability. These bearings are found in electric motors, household appliances, automotive components, and industrial machinery. Their ability to handle both radial and axial loads efficiently makes them suitable for these high-demand applications, ensuring longevity and optimal performance.
• Versatility: Due to their robust design, deep groove ball bearings can handle mixed loads in multiple directions. This makes them highly versatile, ideal for high-speed and demanding applications like electric motors, power tools, and conveyor systems.

Their ability to work seamlessly in different environments contributes to their popularity across diverse industries.

• Low Friction: One of the key features of deep groove ball bearings is their low-friction operation. By reducing friction between moving parts, these bearings ensure efficient energy use and minimal heat generation, which is important for high-speed applications.

This characteristic makes them particularly suitable for precision equipment, helping improve performance and reduce wear.

• Maintenance-Free: Many deep groove ball bearings come with shields or seals that protect against contaminants such as dirt, moisture, and debris. This design reduces the need for regular maintenance or lubrication, making them a reliable, long-lasting solution in environments where frequent servicing would be impractical. This low-maintenance feature makes sure that the bearings perform optimally for extended periods.

Deep groove ball bearings are important for ensuring reliable and efficient operation in countless industries.

Angular Contact Ball Bearings

Angular contact ball bearings are specially designed with raceways that are angled relative to each other, creating a distinctive structure compared to other types of bearings. This design allows for better load distribution, enabling the bearing to efficiently handle both axial and radial loads simultaneously.

The angled contact between the balls and the raceways helps in bearing combined loads, which is a key advantage over other bearing types like deep groove ball bearings. This makes angular contact ball bearings ideal for applications where high precision and reliable load-bearing capacity are important.

One of the most significant benefits of angular contact ball bearings is their ability to handle high-speed and high-precision applications. The raceway design allows them to operate efficiently at high speeds, making them an excellent choice for machinery that requires quick rotations, such as in electric motors and machine tool spindles.

Their design also contributes to minimal friction, which helps reduce heat generation and prolongs the lifespan of the equipment, ensuring long-term performance without frequent maintenance.

In addition to their use in machine tool spindles and electric motor shafts, angular contact ball bearings are commonly employed in precision equipment such as pumps, turbines, and robotics.

Their versatility in handling combined loads and maintaining operational efficiency under high-speed conditions makes them a preferred choice for industries that demand both performance and reliability in their bearing solutions.

Self-Aligning Ball Bearings

Self-aligning ball bearings are designed with two rows of balls and a common concave raceway, allowing them to accommodate misalignments or shaft deflections that may occur during operation.

This unique design ensures that even if the shaft or housing is misaligned, the bearing will continue to function efficiently, reducing the risk of damage. As a result, these bearings are widely used in applications where perfect alignment is difficult to achieve, such as in agricultural machinery, conveyors, and other industrial systems.

• Tolerating Misalignments: The concave raceway and dual ball rows enable self-aligning ball bearings to handle misalignments without compromising performance. Even if the shaft or housing shifts slightly, the bearing can still maintain smooth operation.

This ability to tolerate misalignment is especially valuable in machinery where precise alignment is challenging or impossible to maintain consistently.

• High Radial Load Capacity: Self-aligning ball bearings excel in handling high radial loads due to their design. With two rows of balls, they offer increased contact area, allowing them to bear more substantial radial loads than single-row bearings.

This feature makes them ideal for high-load applications, such as in large industrial machines, conveyors, and agricultural equipment.

• Versatility in High-Load Applications: Due to their high radial load capacity and ability to tolerate misalignments, self-aligning ball bearings are particularly useful in heavy-duty applications. They are widely used in systems such as conveyor belts, large machinery, and agricultural equipment, where alignment issues and heavy loads are common, ensuring long-lasting and efficient performance.

Thrust Ball Bearings

Thrust ball bearings are specifically designed to handle axial loads, which are forces acting along the axis of rotation. They consist of two raceways that sandwich a set of balls, allowing the bearing to support axial pressure efficiently. These bearings are commonly found in automotive applications, such as clutch systems, where they manage axial loads in one direction.

Their design ensures smooth rotation under high-load conditions, making them ideal for systems requiring precise axial support. Thrust ball bearings are particularly valuable in heavy-duty applications, giving reliable performance in high-stress environments that demand effective load management.

Double-Row Angular Contact Ball Bearings

Double-row angular contact ball bearings are an enhanced version of single-row bearings, featuring two rows of balls instead of one. This additional row significantly increases their load-carrying capacity, making them suitable for handling both radial and axial loads efficiently.

Their ability to manage heavy axial loads makes them ideal for high-performance applications, such as in industrial machinery, gearboxes, and high-precision equipment.

These bearings are particularly valuable in applications where space is limited but high load capacity is required. The design also gives greater stability and durability, ensuring smooth operation in demanding environments.

Double-row angular contact ball bearings are important in equipment where optimal performance under load and space constraints is required.

Thin Section Ball Bearings

Thin-section ball bearings are engineered specifically for applications where space and weight reduction are critical. Their design features narrower raceways and smaller balls, making them significantly more compact than traditional bearings.

This allows them to fit into tight spaces without sacrificing performance, making them ideal for use in high-precision environments. Despite their reduced size, thin-section ball bearings are designed to give excellent load-bearing capacity and durability, ensuring reliable operation in compact systems.

These bearings are commonly used in medical devices, where compactness is important for precision, as well as in measuring instruments and robotics, where space is often at a premium. In these applications, thin-section bearings contribute to the overall system's efficiency, reducing friction and improving performance while maintaining a lightweight design.

Their ability to support both radial and axial loads makes them versatile for various mechanical setups.

Thin-section ball bearings are also used in aerospace, high-speed machinery, and optical devices, where maintaining high precision in constrained spaces is critical. Their durability, coupled with their ability to operate effectively in demanding conditions, ensures that they meet the stringent requirements of industries that rely on both space-saving and performance-enhancing technologies.

Overall, thin-section ball bearings are indispensable for high-precision applications, offering a perfect balance of size, weight, and durability.

Miniature Ball Bearings

Miniature ball bearings are compact, highly precise bearings designed for applications where space is limited. Commonly used in small motors, cameras, and other compact devices, these bearings excel in environments where precision and size are important. Despite their small size, they are capable of handling high rotational speeds, making them ideal for high-performance equipment.

While miniature ball bearings are generally suited for light loads, their ability to achieve fast rotations without compromising accuracy is a key advantage. Their small size and efficiency make them perfect for compact mechanical systems, where space-saving and precise operation are essential.

Flanged Ball Bearings

Flanged ball bearings feature a flange on one side of the outer race, which aids in alignment and securing the bearing within a housing. This design is particularly beneficial in applications with space constraints, such as in consumer electronics, hobby projects, and small machinery. The flange simplifies installation by giving a stable mounting surface, ensuring a secure fit, and preventing the bearing from shifting during operation.

These bearings are ideal for rotational applications where precision and space-saving are important. Their compact design, combined with easy installation, makes flanged ball bearings a popular choice in tight, high-performance systems.

Plastic Ball Bearings

Plastic ball bearings utilize polymer materials, such as acetal, nylon, or PTFE, often in combination with stainless steel or glass balls. They are lightweight, corrosion-resistant, and non-magnetic.

They are excellent for applications where traditional metal or ceramic bearings may not perform well. These bearings are particularly useful in industries that require chemical resistance, such as food processing, medical devices, and marine environments. Their ability to operate without lubrication also makes them suitable for cleanroom and moisture-prone applications.

Ceramic Ball Bearings

Ceramic ball bearings use ceramic materials instead of steel for the balls. The use of ceramic increases the bearing's resistance to high temperatures and reduces wear and tear. These bearings are often used in high-speed applications and extreme conditions, such as in aerospace and racing.

They are particularly beneficial in high-performance applications where low friction and heat resistance are important. In some cases, ceramic and plastic ball bearings are used together with plastic races and ceramic balls. This combination provides low weight, chemical resistance, and excellent thermal performance.

Y-Bearings

Y-bearings are distinct due to their elongated inner race and the ability to attach to the shaft with set screws. They are commonly found in conveyor systems and various types of industrial machinery where easy installation is needed.

Their simple mounting system makes them a convenient option for industries requiring quick setup and stable support.

Spherical Ball Bearings

Spherical ball bearings feature a self-aligning design that allows them to compensate for misalignments. This feature makes them ideal for heavy-duty applications like construction machinery and large engines, where misalignment is a frequent concern.

The ability to handle misalignment without compromising performance is a key benefit of spherical ball bearings.

Thrust Spherical Ball Bearings

Similar to spherical ball bearings, thrust spherical ball bearings are designed to handle axial loads. Their main difference lies in their ability to accommodate misalignment while supporting thrust loads in both directions. They are often used in heavy-duty industrial applications such as cranes and large fans.

These bearings are perfect for situations where misalignment occurs and high thrust loads are involved.

Crossed Roller Bearings

Crossed roller bearings consist of cylindrical rollers arranged alternately at right angles to one another. They offer high rigidity and are ideal for applications that require precise motion control, such as in robotics and precision machinery.

Their ability to manage both radial and axial loads in a compact design makes them ideal for space-constrained applications requiring exact precision.

Needle Bearings

Needle bearings use long, thin rollers to support radial loads in limited spaces. These bearings have a high load capacity relative to their size, making them suitable for applications where space is at a premium, such as in the automotive and aerospace industries.

Needle bearings are particularly effective in reducing friction in tight spaces, where other types of bearings may be too large.

Roller Bearings

Roller bearings, while not strictly ball bearings, offer excellent performance for high-load applications. They use cylindrical rollers instead of balls, which allows them to support heavier loads while maintaining smooth operation. These bearings are often used in heavy industrial machinery.

They are especially well-suited for situations where heavy radial loads are a primary concern.

Final Thoughts on Ball Bearings

Understanding the different types of ball bearings and their applications is important when selecting the right bearing for your machinery. Each type of ball bearing offers distinct advantages depending on the operational needs, such as load capacity, alignment tolerance, and speed.
