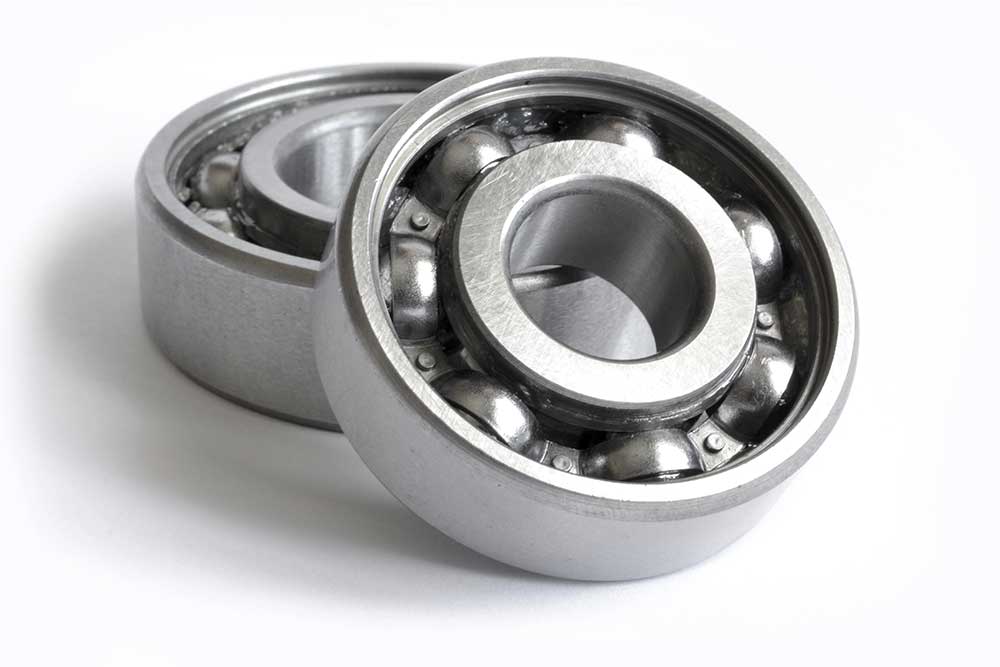

How To Select Ball Bearings Based On Size
When choosing ball bearings, size matters more than you may think. Properly sizing your bearings certifies that your machinery operates smoothly and efficiently. Ball bearings come in various sizes, which play a significant role in their load capacity, speed ratings, and ability to handle specific applications.
If you are selecting miniature ball bearings for medical devices or heavy-duty bearings for mining equipment, understanding how to choose the correct size is analytical. Let us explore the basics of selecting ball bearings by size and how these factors influence your equipment's performance.
Understanding Ball Bearing Sizes
Ball bearings are defined by three key measurements: the inner diameter (ID), the outer diameter (OD), and the width (W). These dimensions are typically provided in millimeters (mm), though imperial measurements can also be used.
Each bearing series has a range of sizes that correspond to the bearing’s dimensions. For example, the 6200 series typically includes bearings with an ID from 10 mm to 150 mm.
The Importance of Correct Sizing
Selecting the correct ball bearing size impacts the overall efficiency of your machinery. Incorrectly sized bearings can lead to misalignment, excessive friction, and increased wear. Smaller bearings are suited for lightweight and space-constrained applications like robotics, while larger bearings are necessary for heavy-duty tasks such as mining or industrial equipment.
Sizing and Load Capacity
Ball bearing sizes are not only about fitting dimensions; they also determine the load capacity. Smaller bearings have limited load-bearing capabilities and are used for low-load applications. In contrast, larger bearings can handle heavier loads and are used in industrial applications. For example, a bearing in the 6000 series may handle light to medium loads, while a 6200 series bearing is suitable for higher load demands.
Speed Ratings and Size
Speed ratings are another factor that correlates with bearing size. Larger bearings typically have better speed capabilities and can operate at higher rotational speeds without excessive heat buildup. Smaller bearings are often limited to slower speeds due to their reduced capacity to dissipate heat.
Understanding your application’s speed requirements will help you select a bearing size that can handle the intended rotations per minute (RPM) without overheating or degrading over time.
Using a Bearing Size Chart
Bearing size charts are helpful tools when choosing the correct ball bearing by size. These charts list the inner diameter, outer diameter, and width of each bearing size. They are useful when you need to cross-reference bearing series numbers to find a match for your application.
You can use the chart to ensure that the bearing you select meets your specific requirements, such as load capacity, speed ratings, and fit for your machinery.
Measuring Ball Bearings
Sometimes, the bearing identification number may become illegible, making it difficult to determine the correct bearing size. In these cases, measuring the bearing manually with tools like vernier calipers or micrometers is important. To measure the inner diameter, place the caliper's outer jaws inside the bearing’s inner ring and measure across its width.
The outer diameter can be measured in a similar manner by fitting the bearing into the caliper jaws. Once you have these measurements, consult a bearing size chart to match your bearing with the correct series and dimensions.
Challenges of Mismatched Ball Bearing Sizes
When ball bearings are not selected according to the correct size, several problems can arise. Incorrectly sized bearings lead to increased friction and wear, which can reduce the bearing's lifespan. This also creates inefficiencies, as misalignment may cause vibrations or noise.
In some cases, mismatched bearings may result in overheating, especially in high-speed applications. To avoid these issues, always measure the bearings carefully and choose the correct size based on the load, speed, and environment of your application.
Choosing the Right Ball Bearing Size for Your Application
To choose the right ball bearing size for your application, start by considering the type of load it will bear. For light loads, smaller bearings are sufficient, while larger bearings are necessary for heavier loads.
Additionally, consider the speed requirements, environmental factors, and space constraints of your equipment. Once you have a clear understanding of these factors, consult a bearing size chart and cross-reference the dimensions to find a matching bearing.
How Next Point Bearing Group Can Help
At Next Point Bearing Group, we understand that selecting the right ball bearings based on size can be a complex process. With our vast inventory and experienced team, we are here to help you find the ideal bearing for your specific application.
Let us assist you in selecting the right ball bearings, and we will ensure that your machinery operates at peak efficiency. For more information, check out our inventory or browse through our collection of bearings.
