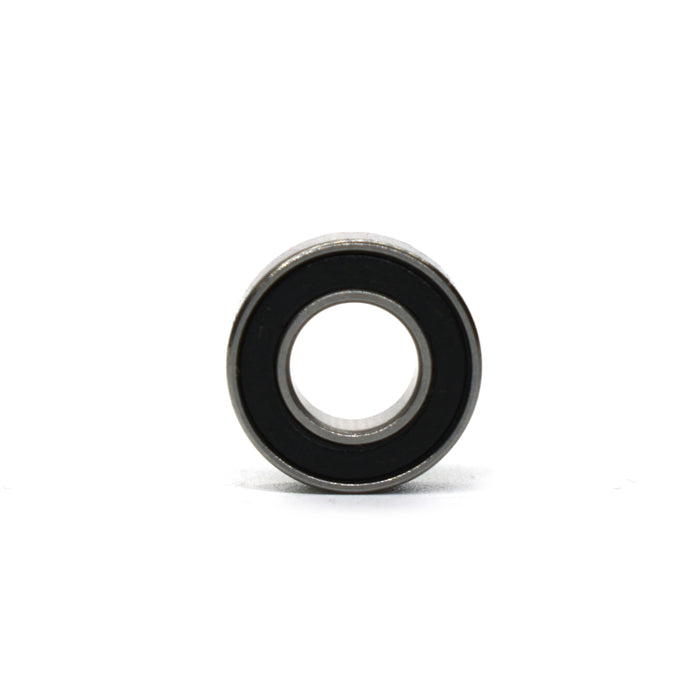

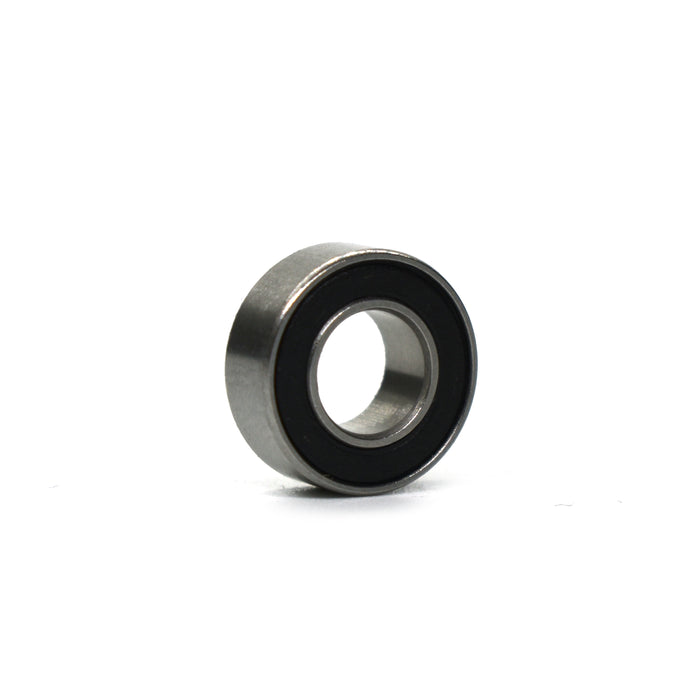

6203-2RS-16 - Chrome Steel - Sealed - Radial Ball Bearing - 16mm x 40mm x 12mm

Original price $6.50 - Original price $6.50
Original price $6.50
$6.50
$6.50 - $6.50
Current price $6.50
Part Number: 6203-2RS-16
Series: 6200 Series - Inches and Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
40.0
16.0
12.0
Inches
1.5748
0.6299
0.4724
Load Ratings (lbs)
Dynamic: 2140
Static: 1060
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6203-16RS ball bearing from the trusted 6200 Series, expertly designed for precision engineering. This high-quality bearing features robust chrome steel construction and double rubber seals for superior protection against contaminants. Ideal for various applications, it combines durability and reliability. **Specifications:** - Part Number: 6203-16RS - Series: 6200 Series - Inches and Metric - Bore: 16 mm (0.6299 in) - Outer Diameter: 40 mm (1.5748 in) - Width: 12 mm (0.4724 in) For custom options or if you don’t find the bearing you’re looking for, please call us at 1-800-423-9000. We appreciate the opportunity to help you.
