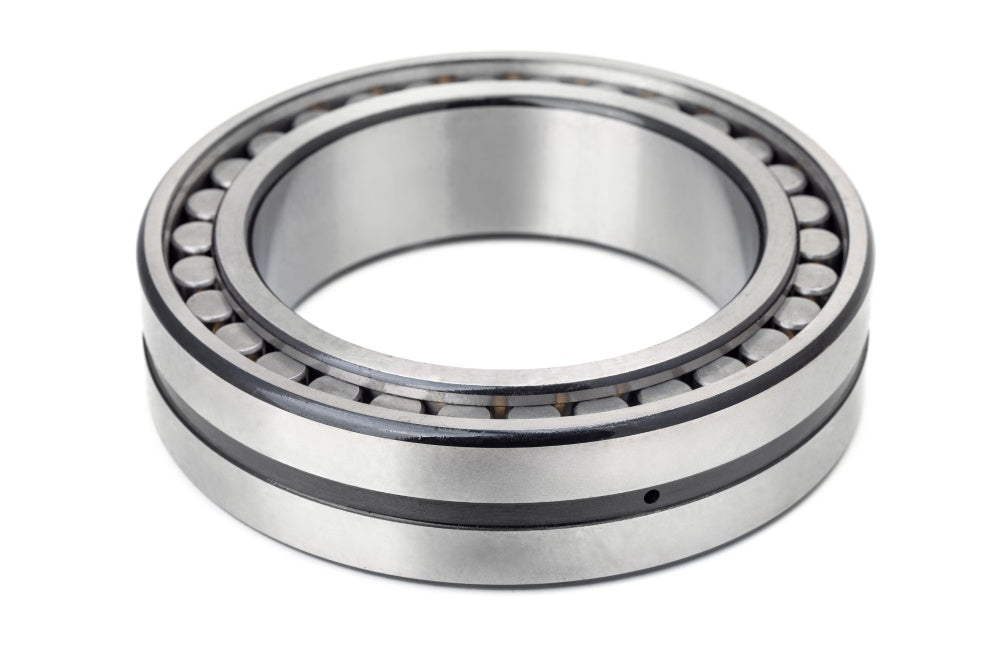

How To Properly Assemble Spindle Bearings
The precision of a machine tool is only as reliable as its internal components. Achieving a successful spindle bearing assembly requires so much more than just mechanical skill.
A single error or misalignment during installation can lead to thermal runaway, vibration, and ultimately, a catastrophic breakdown of the machine. This article will guide you through the proper steps for assembling spindle bearings, their significance, and how to ensure the longevity and performance of your machinery.
Understanding the Components
What is a spindle bearing? A spindle bearing is designed to support the rotating shaft, or spindle, in various machines and systems. The function of the spindle bearing is to reduce friction between the rotating spindle and its housing, enabling smooth, high-speed rotation.
This is particularly important in applications requiring precise control, such as CNC machining, automotive engines, and even equipment used in lawns and garden maintenance. Spindle bearings help maintain proper alignment of the spindle, keeping rotational motion smooth and without distortion.
Unlike standard radial bearings, these high-precision components are designed specifically to handle combined loads while maintaining extreme axial and radial rigidity.
They are manufactured to meet much tighter tolerances than general-purpose bearings. They are often used in pairs or sets, and their relationship to one another within the housing determines the final performance of the spindle.
Creating a Contamination-Free Environment
The most significant threat to a high-speed bearing is contamination. Even a speck of dust that is invisible to the naked eye can act as a destructive abrasive when the spindle reaches its operating speed of several thousand revolutions per minute. Therefore, the assembly must take place in a controlled environment.
Next Point Bearing Group, LLC recognizes the necessity of this level of care, which is why we utilize a certified ISO 6, Class 1000 clean room for our value-added services. Our facility keeps sensitive components pristine during re-lubrication and packaging.
This same level of environmental control should be mirrored in the field during assembly. Surfaces must be cleaned with lint-free cloths and high-purity solvents, and tools should be demagnetized and cleaned to prevent the introduction of metallic particles into the raceways.
Steps for Properly Assembling a Spindle Bearing
Assembling spindle bearings requires attention to detail to ensure proper alignment and functionality. Start by inspecting all components, including the spindle, housing, and bearing itself, to make sure they are free of dirt, debris, or damage.
Next, carefully install the bearing into its housing, making sure it fits snugly and is aligned correctly. The bearing should be able to rotate freely without excessive play.
Use the correct type of lubrication as recommended by the manufacturer to ensure that the bearing operates smoothly and minimizes friction. Seals should also be installed to protect the bearing from contaminants and moisture, further extending its life.
Once the bearing is securely in place, check the spindle’s rotation manually to ensure it turns smoothly. If there’s any resistance or unusual noise, it may indicate improper assembly, misalignment, or inadequate lubrication. Repeat the assembly process if needed, paying close attention to each step.
This balance is especially relevant in lawns & garden equipment, where spindle reliability in mowers and power tools is often tested by variable outdoor conditions and high-impact loads.
How to Replace Spindle Bearings
Over time, spindle bearings will experience wear and tear due to constant use and exposure to heat and friction. For technicians learning how to replace spindle bearings, the first step in replacement is to safely remove the old bearing, making sure that no other components are damaged in the process. Inspect the bearing housing for any wear or damage and clean it thoroughly before installing the new bearing.
When replacing the spindle bearing, make sure to select a bearing that matches the specifications of the original. Incorrect bearings can cause misalignment or performance issues. Apply the appropriate lubrication to the new bearing and install it following the same steps as the initial assembly.
After the new bearing is in place, manually rotate the spindle to ensure smooth operation. If any issues arise, recheck the assembly to ensure proper alignment and fit.
Achieving Long-Term Spindle Reliability
Properly assembling a spindle is an exercise in patience and precision. By controlling the environment, respecting the tolerances of the shaft and housing, and adhering to strict lubrication and run-in protocols, you protect your investment and ensure peak performance.
We emphasize these procedures because the longevity of all bearing products depends on the harmony between the hardware and the environment in which they operate. The transition from a pile of parts to a high-speed precision tool is a technical achievement that requires the right components and the right process. When these elements align, the result is a machine that operates with maximum efficiency and minimum downtime.
