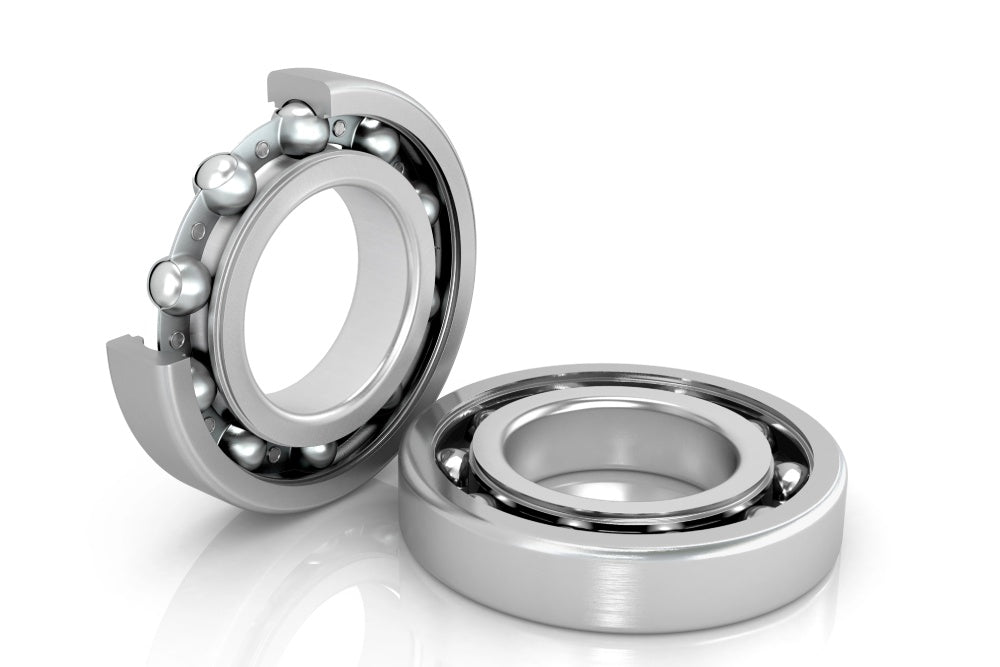

How Spindle Bearings Support Precision And Speed
In high-speed machining and industrial manufacturing, the spindle serves as the center of operations. The performance of machine tools is directly determined by the capabilities of their internal rotation components.
The spindle bearing is the main element that allows these machines to rotate at incredibly high revolutions per minute while maintaining sub-micron levels of accuracy. These precision-engineered components are designed to manage extreme thermal stability, minimize vibration, and provide the rigidity necessary to resist deflection under heavy cutting loads.
In this article, we’ll understand the role of spindle bearings, their impact on precision and speed, and why proper assembly and timely replacement affect performance.
What Are Spindle Bearings?
Spindle bearings are specialized bearings designed to support rotating components within a machine, typically the spindle itself, which is a central rotating shaft. These bearings allow the spindle to rotate smoothly while bearing the weight and force from the surrounding components.
The bearing is designed to handle both radial and axial loads, making it versatile in various applications. A spindle bearing assembly includes the bearing itself, along with the housing and any additional components required to ensure it functions properly within the machinery.
The Mechanics of High-Speed Stability
The primary challenge of any spindle application is balancing the competing needs of speed and stiffness. A spindle must be rigid enough to withstand the lateral forces of a cutting tool biting into metal, yet free enough to rotate at speeds that would cause standard bearings to fail due to heat.
Precision angular contact ball bearings are the most common solution for this requirement. By using specific contact angles, these bearings can handle a combination of radial and axial loads.
In a high-performance spindle bearing assembly, these components are often arranged in sets and preloaded. This preloading keeps the rolling elements in constant contact with the raceways, eliminating internal clearance and providing the geometric stability required for high-speed precision.
Materials and Innovation in Spindle Technology
To achieve the next level of performance, material science plays a significant role in bearing design. Many modern high-speed spindles utilize ceramic rolling elements, often referred to as hybrid bearings.
Ceramic balls are lighter and harder than steel, which significantly reduces centrifugal force at high speeds and lowers the operating temperature of the assembly. This reduction in heat is vital because thermal expansion is the enemy of precision.
If a spindle shaft expands even slightly due to heat, the tool position shifts, resulting in parts that fall outside of the required tolerance. By utilizing advanced materials, manufacturers can push the boundaries of what is possible in automated production. Machines can therefore run faster and longer without a loss in accuracy.
By minimizing friction, these bearings reduce the amount of energy required to rotate the spindle, enabling faster speeds without generating excess heat. This enhanced speed is particularly important in high-production environments.
The Importance of Timely Spindle Bearing Replacement
Even the highest quality bearings have a finite lifespan, and in the context of a spindle, the stakes for maintenance are exceptionally high. These bearings operate at the limits of mechanical endurance, so even a microscopic amount of contamination or a slight error in lubrication can lead to rapid failure.
When performance begins to degrade, often signaled by increased noise, vibration, or a decrease in surface finish quality on machined parts, a spindle bearing replacement becomes necessary. This process is highly technical and requires a clean environment to prevent any particulate matter from entering the assembly during installation.
Using a certified clean room for such tasks is often the difference between a spindle that lasts for years and one that fails within weeks of being put back into service.
Supporting Diverse Industrial Applications
Next Point Bearing Group, LLC understands the rigorous demands placed on these high-precision components. As a leading value-added distributor, we specialize in providing the technical expertise and high-quality inventory necessary to keep advanced manufacturing lines operational.
Our role as a supplier is to give our clients access to the exact specifications required for their unique applications. Whether a client is maintaining a fleet of industrial CNC machines or sourcing parts for professional lawns & garden equipment, we provide the specialized support and reliable sourcing required.
While high-end machining is the most common home for these components, the principles of precision and speed are applicable in a wide variety of industries. Our expansive inventory is curated to reflect this diversity; we carry all bearing products necessary for both common industrial use and highly specialized applications.
By maintaining one of the largest inventories of miniature precision bearings in the U.S., we are able to serve as a just-in-time partner for companies that cannot afford the downtime associated with long lead times.
Our team’s deep industry experience allows us to guide customers to the right solution, whether they need custom machining, expert advice, or specialized packaging for sensitive environments.
Contact us today to consult with our expert sales team or shop online to find the right spindle bearings for your machinery and keep your systems performing at their best.
