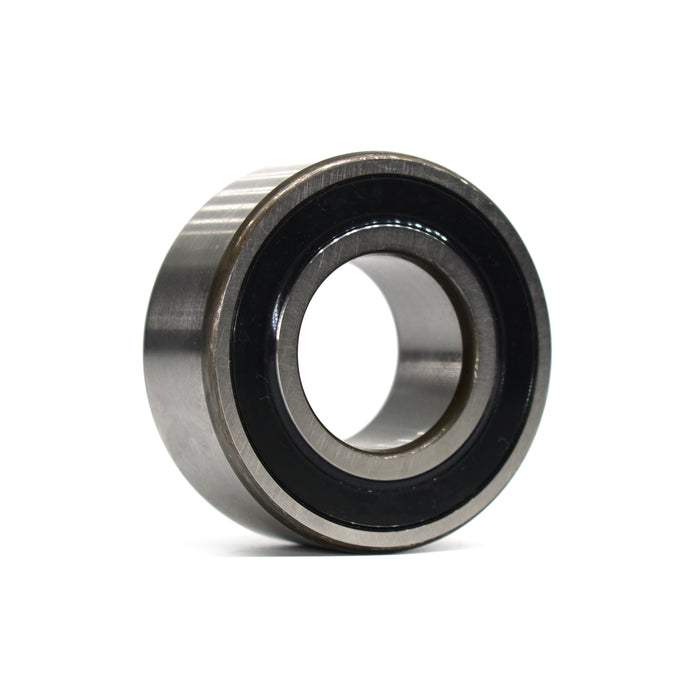

SS5309-2RS - Stainless Steel - Sealed - Radial Ball Bearing - 45mm x 100mm x 40mm

Original price $74.50 - Original price $74.50
Original price $74.50
$74.50
$74.50 - $74.50
Current price $74.50
Part Number: SS5309-2RS
Series: 5200 Series - Double Row Metric
Type: Straight
Cage Type: Stainless Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION

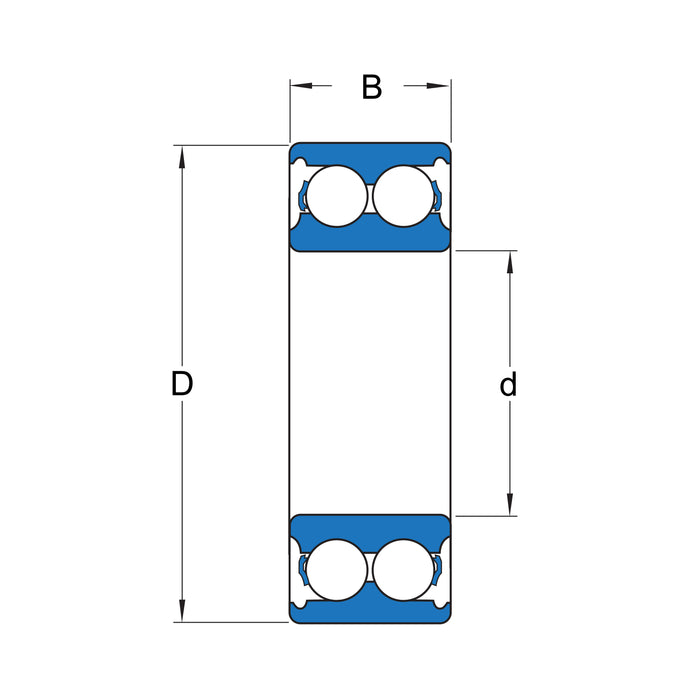

Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
100.0
45.0
39.7
Inches
3.937
1.7717
1.563
Load Ratings (lbs)
Dynamic: 16290
Static: 12190
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the SS5309-2RS, a top-tier option from the 5200 Series - Double Row Metric lineup, engineered for optimal performance in precision applications. This high-quality stainless steel ball bearing combines durability with exceptional engineering, making it ideal for engineers and mechanically inclined individuals. Key Features: - **Part Number:** SS5309-2RS - **Bore:** 45 mm (1.7717 in) - **Outer Diameter:** 100 mm (3.937 in) - **Width:** 39.7 mm (3.937 in) - **Closure Type:** Double Rubber Seal - **ABEC Rating:** 1 - **Lubrication:** Additional options available With its double rubber seal, this bearing ensures superior protection against contaminants while maintaining efficient performance. For specialized needs or inquiries, please contact us at 1-800-423-9000. We appreciate the opportunity to assist you.
