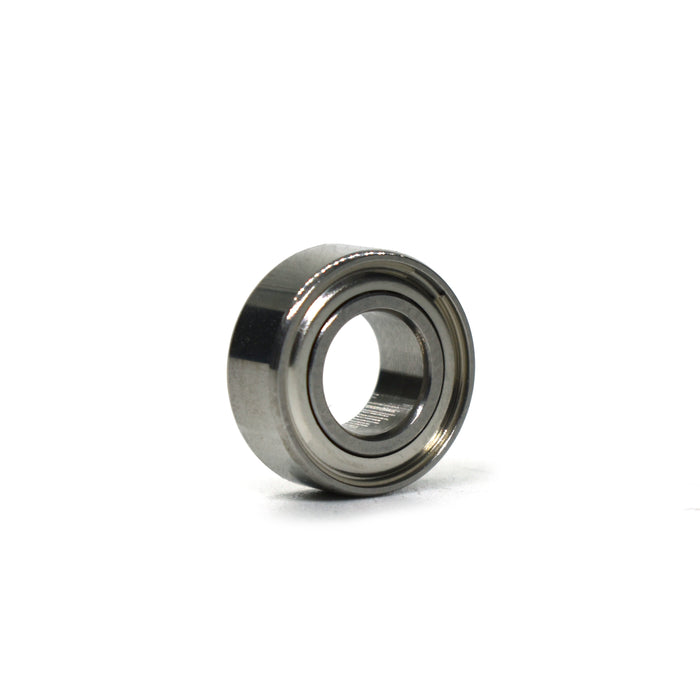

S604ZZ - Stainless Steel - Shielded - Radial Ball Bearing - 4mm x 12mm x 4mm

Original price $5.50 - Original price $5.50
Original price $5.50
$5.50
$5.50 - $5.50
Current price $5.50
Part Number: S604ZZ
Series: 600 Series - Metric Miniatures - Double Shielded
Type: Straight
Cage Type: Stainless Steel
Shield Type: Double Shield
Snap Ring: No

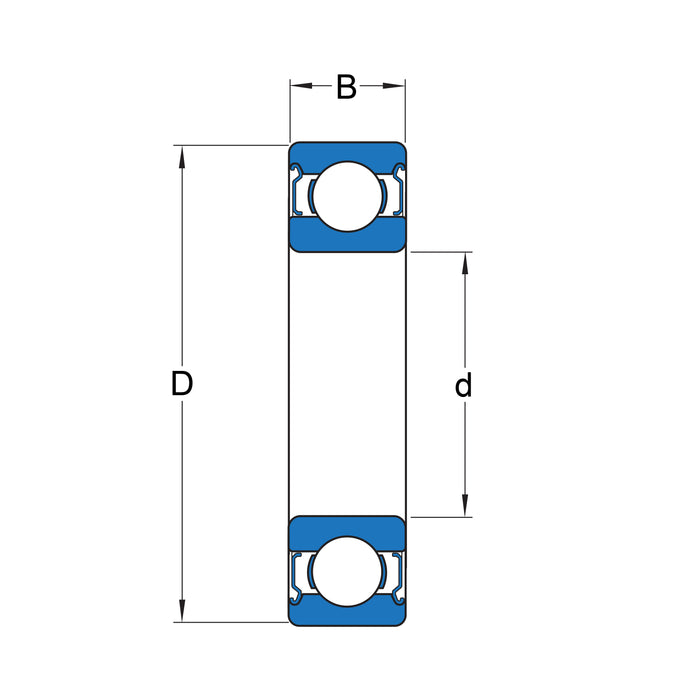

TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
12.0
4.0
4.0
Inches
0.1575
N/A
0.1575
Load Ratings (lbs)
Dynamic: 240
Static: 77
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the S604ZZ ball bearing—a hallmark of precision engineering in the 600 Series - Metric Miniatures - Double Shielded category. Crafted from high-quality stainless steel, this bearing ensures top-tier performance and reliability for your delicate applications. **Specifications:** - Part Number: S604ZZ - Bore: 4 mm (0.1575 in) - Outer Diameter: 12 mm (0.1575 in) - Width: 4 mm (0.1575 in) - Shielding: Double Shielded - Ring Feature: None Elevate your engineering projects with this meticulously crafted bearing designed for miniature applications. For any inquiries or special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.
