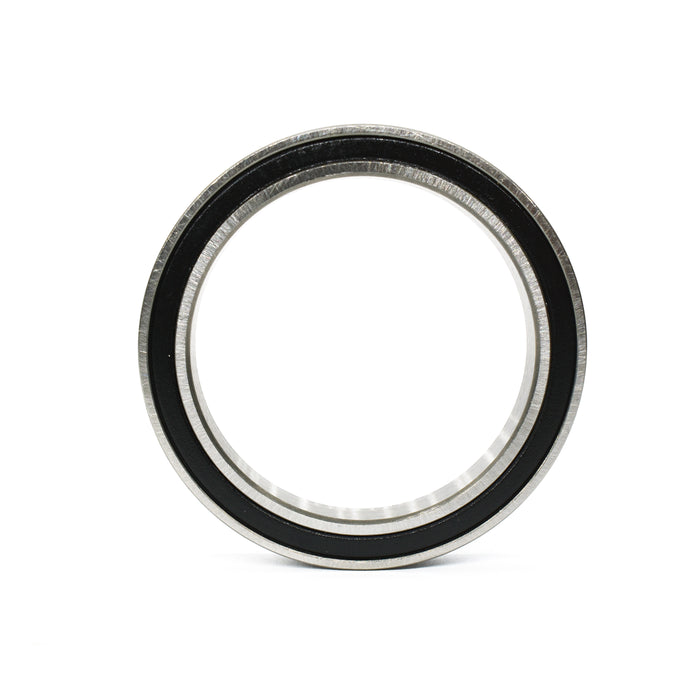

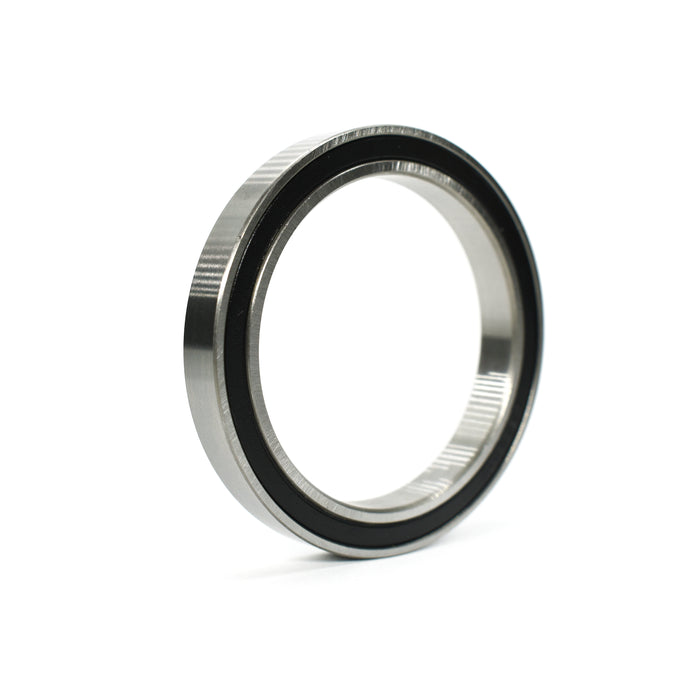

6803-2RS - Chrome Steel - Sealed - Radial Ball Bearing - 17mm x 26mm x 5mm

Original price $4.50 - Original price $4.50
Original price $4.50
$4.50
$4.50 - $4.50
Current price $4.50
Part Number: 6803-2RS
Series: 6800 Series - Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
26.0
17.0
5.0
Inches
1.0236
0.6693
0.1969
Load Ratings (lbs)
Dynamic: 480
Static: 310
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6803-2RS ball bearing, a premium choice in the 6800 Series - Metric. Engineered for precision, this high-quality bearing is perfect for various applications. **Specifications:** - **Part Number:** 6803-2RS - **Bore:** 17 mm (0.6693 in) - **Outer Diameter:** 26 mm (1.0236 in) - **Width:** 5 mm (0.1969 in) - **Material:** Chrome Steel - **Closure Type:** Double Rubber Seal - **ABEC Tolerance:** ABEC 1 Designed for accurate performance, this sealed bearing protects against contaminants while ensuring smooth operation. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
