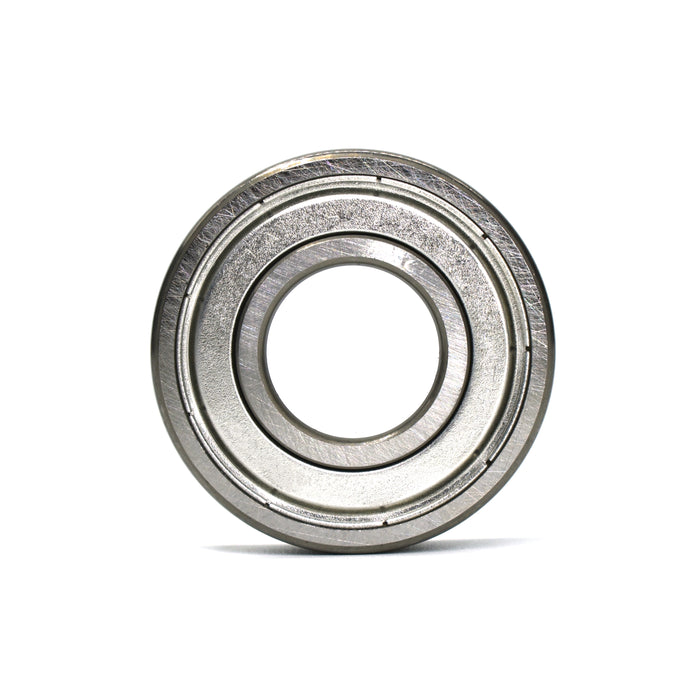

6315ZZ - Chrome Steel - Shielded - Radial Ball Bearing - 75mm x 160mm x 37mm

Original price $56.50 - Original price $56.50
Original price $56.50
$56.50
$56.50 - $56.50
Current price $56.50
Part Number: 6315ZZ
Series: 6300 Series - Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Shield
Snap Ring: No
TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
160.0
75.0
37.0
Inches
6.2992
2.9526
1.4567
Load Ratings (lbs)
Dynamic: 25520
Static: 17350
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6315ZZ ball bearing, crafted for precision and reliability. Designed in the 6300 Series - Metric, this bearing combines exceptional engineering quality with robust performance. **Key Specifications:** - Part Number: 6315ZZ - Series: 6300 Series - Metric - Bore: 75 mm (2.9526 inches) - Outer Diameter: 160 mm (6.2992 inches) - Width: 37 mm (1.4567 inches) - Material: Chrome - Closure Type: Double Shield - Flange: Straight O.D - ABEC Rating: 1 (with additional tolerances available) This bearing provides superior protection against contaminants, making it an ideal choice for a wide range of applications. For customized options or unique requests, please call us at 1-800-423-9000. We appreciate the opportunity to assist you!
