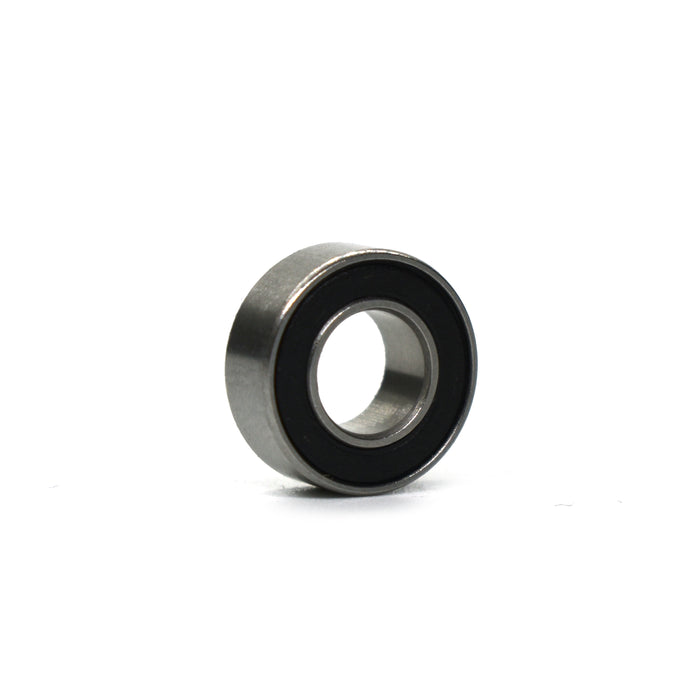

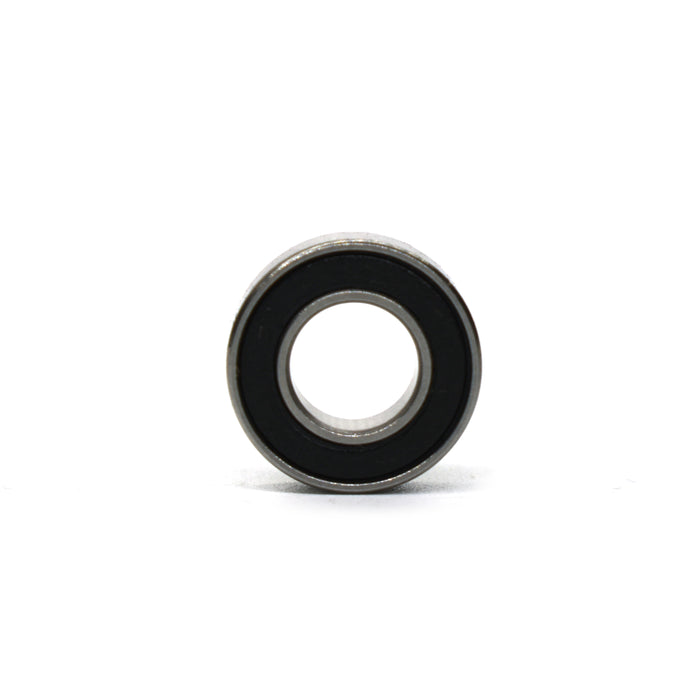

6308-2RS - Chrome Steel - Sealed - Radial Ball Bearing - 40mm x 90mm x 23mm

Original price $8.75 - Original price $8.75
Original price $8.75
$8.75
$8.75 - $8.75
Current price $8.75
Part Number: 6308-2RS
Series: 6300 Series - Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
90.0
40.0
23.0
Inches
3.5433
1.5748
0.9055
Load Ratings (lbs)
Dynamic: 9160
Static: 5400
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6308-2RS ball bearing, an exceptional choice from the 6300 Series - Metric for engineers seeking precision and quality. **Specifications:** - **Part Number:** 6308-2RS - **Bore:** 40 mm (1.5748 in) - **Outer Diameter:** 90 mm (3.5433 in) - **Width:** 23 mm (0.9055 in) - **Material:** Chrome Steel - **Closure Type:** Double Rubber Seal - **ABEC Rating:** 1 (with tolerances A3 to A9 available upon request) This ball bearing exhibits precise engineering, ensuring smooth operation and durability in critical applications. For customized options or special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.
