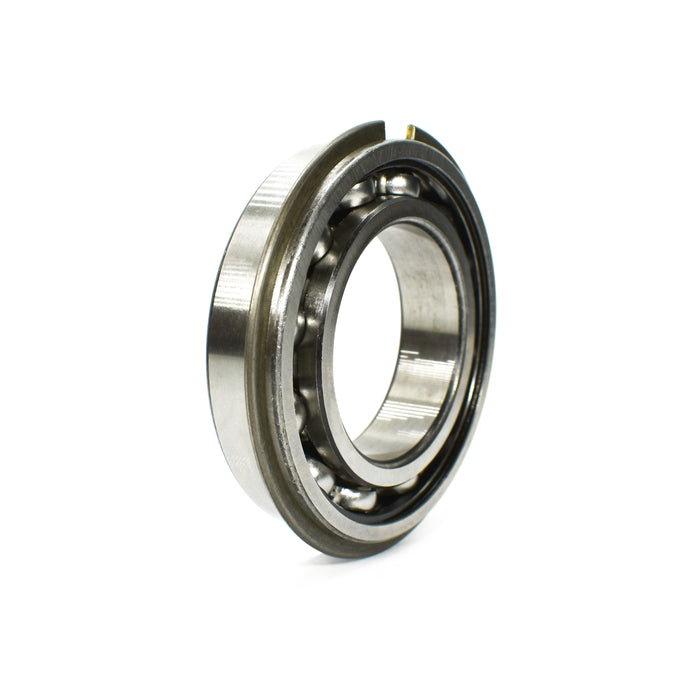

6307NR - Chrome Steel - Open - Radial Ball Bearing - 35mm x 80mm x 21mm

Original price $15.95 - Original price $15.95
Original price $15.95
$15.95
$15.95 - $15.95
Current price $15.95
Part Number: 6307NR
Series: 6300 Series - Metric
Type: Snap Ring
Cage Type: Chrome Steel
Shield Type: Open
Snap Ring: Yes
TECHNICAL SPECIFICATION

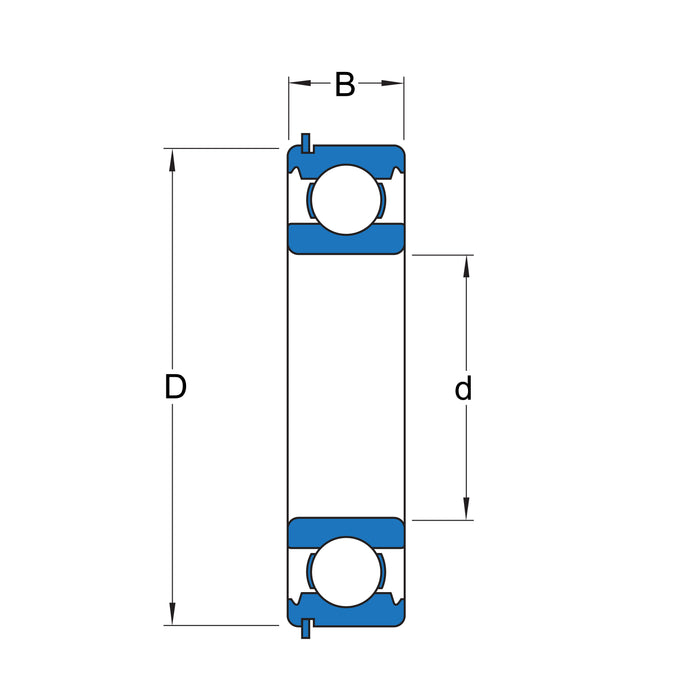

Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
80.0
35.0
21.0
Inches
3.1496
1.378
0.8268
Load Ratings (lbs)
Dynamic: 7490
Static: 4300
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6307NR ball bearing, expertly engineered for precision and reliability. This metric bearing is ideal for applications that demand high performance and durability. **Specifications:** - **Part Number:** 6307NR - **Series:** 6300 Series - Metric - **Bore:** 35 mm (1.378 in) - **Outer Diameter:** 80 mm (3.1496 in) - **Width:** 21 mm (0.8268 in) - **Type:** Snap Ring Constructed from premium chrome material, this Open bearing offers the advantage of easy lubrication. Its straight outer diameter ensures compatibility in various engineering applications. For specialized requests or if you don’t find the bearing you’re looking for, please call us at 1-800-423-9000. We appreciate the opportunity to help you.
