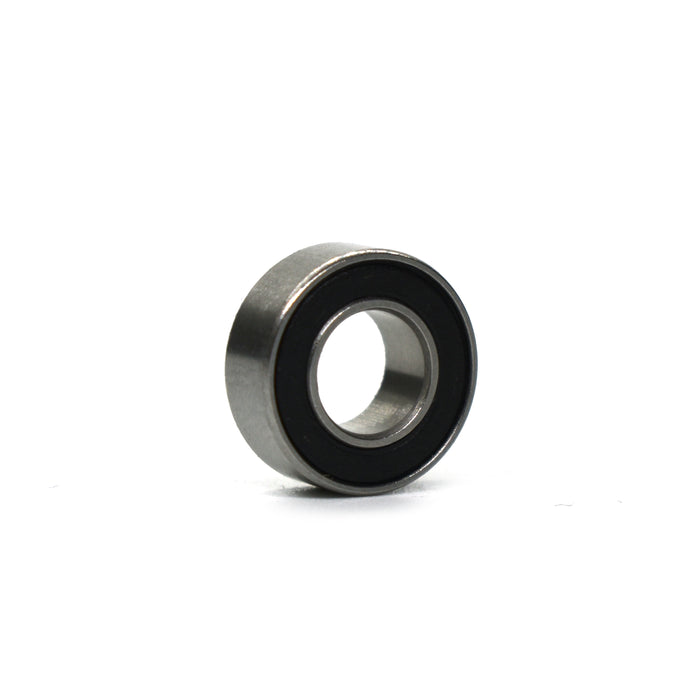

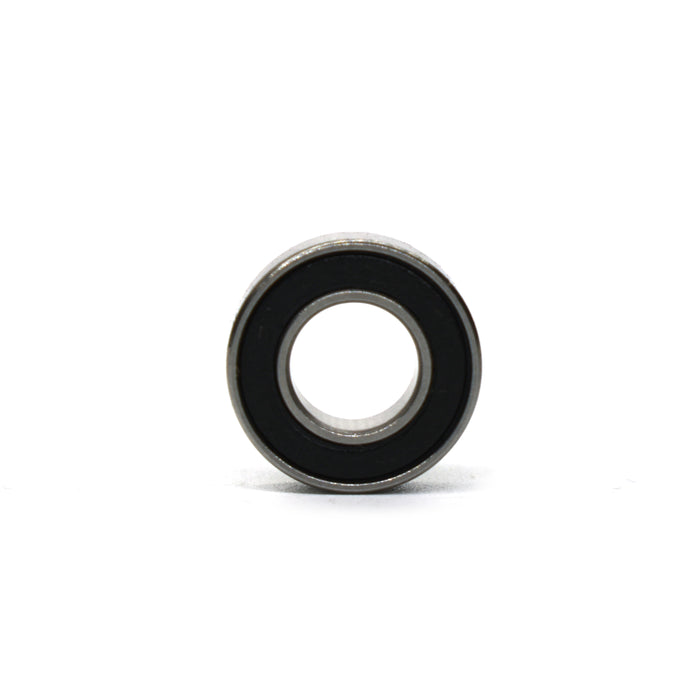

6304-2RS - Chrome Steel - Sealed - Radial Ball Bearing - 20mm x 52mm x 15mm

Original price $4.95 - Original price $4.95
Original price $4.95
$4.95
$4.95 - $4.95
Current price $4.95
Part Number: 6304-2RS
Series: 6300 Series - Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION

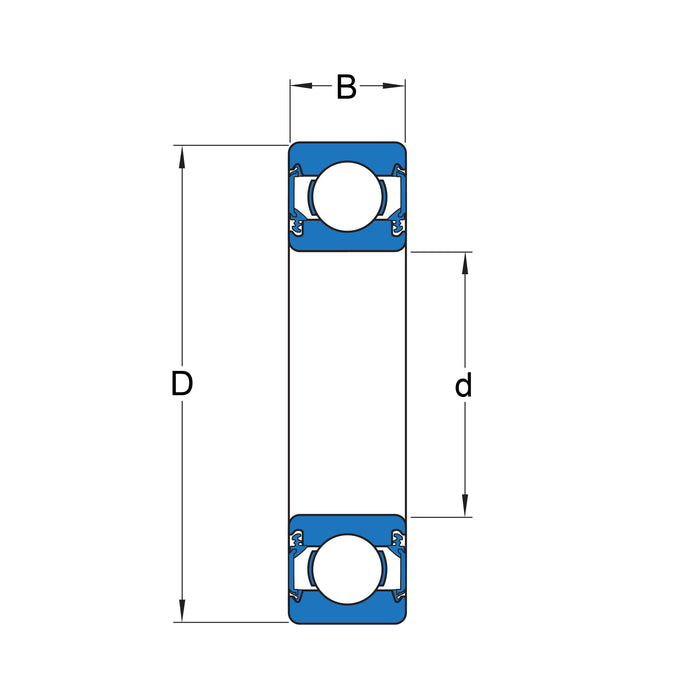

Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
52.0
20.0
15.0
Inches
2.0472
0.7874
0.5906
Load Ratings (lbs)
Dynamic: 3590
Static: 1770
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6304-2RS ball bearing from the renowned 6300 Series - Metric, expertly engineered for precision applications. This bearing ensures exceptional performance and reliability, ideal for engineers and mechanical professionals. **Specifications:** - **Part Number:** 6304-2RS - **Bore:** 20 mm (0.7874 in) - **Outer Diameter:** 52 mm (2.0472 in) - **Width:** 15 mm (0.5906 in) - **Material:** Chrome Steel - **Closure Type:** Double Rubber Seal - **ABEC Rating:** 1 This high-quality ball bearing features double rubber seals for protection against contaminants, ensuring longevity and smooth operation. With additional lubrication options available in our clean room facility, the 6304-2RS stands out for its engineering quality and durability. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
