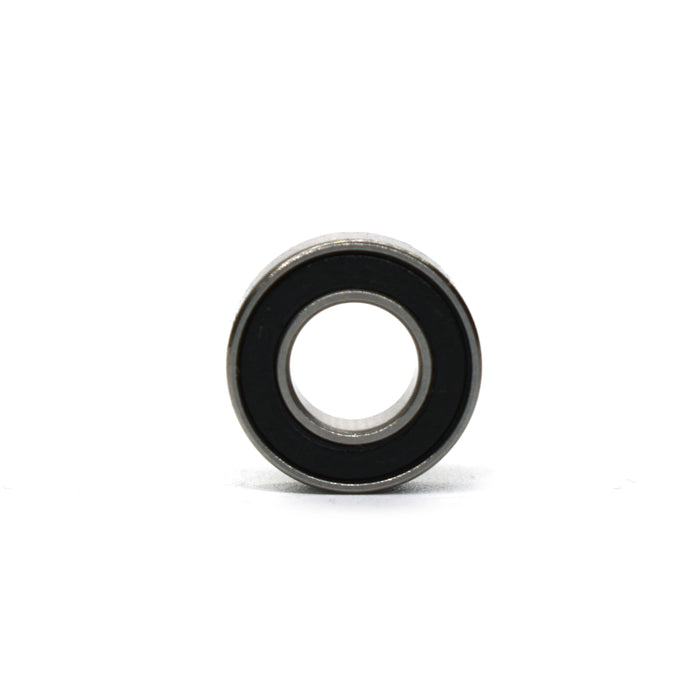

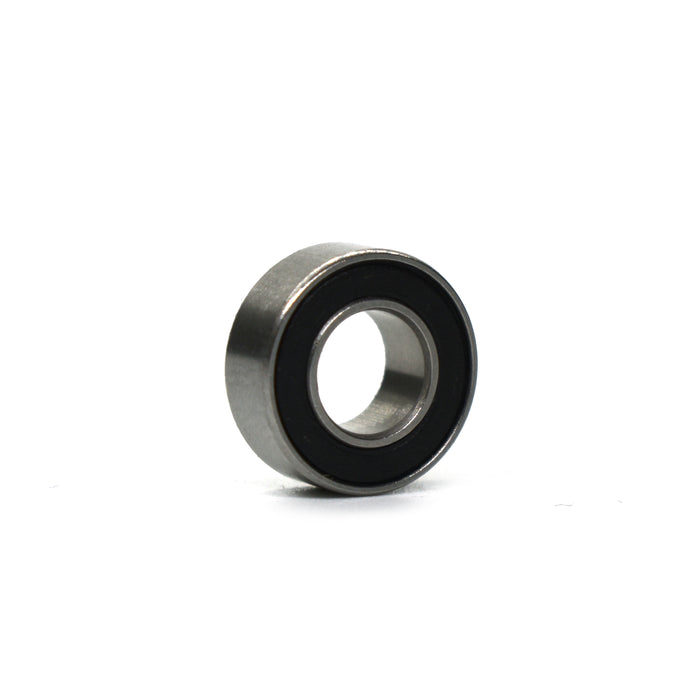

6203-2RS-5/8 - Chrome Steel - Sealed - Radial Ball Bearing - 5/8" x 40mm x 12mm

Original price $5.50 - Original price $5.50
Original price $5.50
$5.50
$5.50 - $5.50
Current price $5.50
Part Number: 6203-2RS-5/8
Series: 6200 Series - Inches and Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION

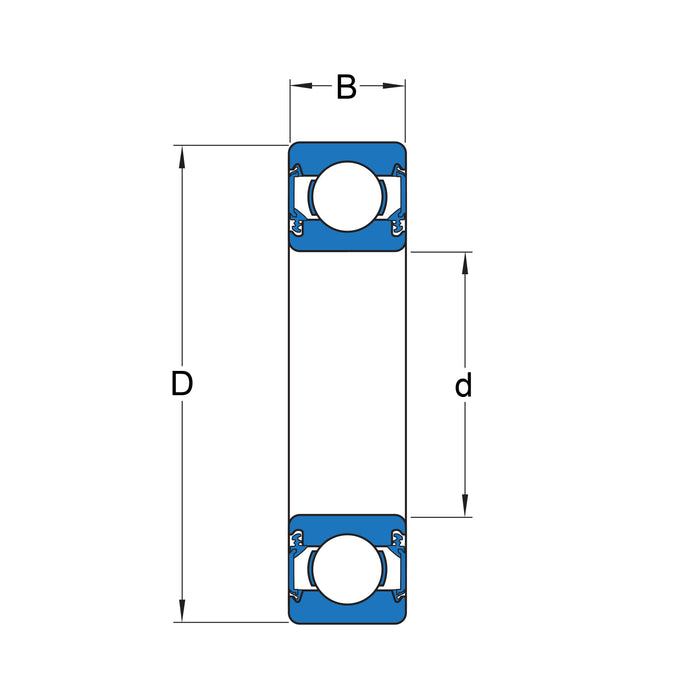

Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
40.0
15.88
12.0
Inches
1.5748
0.625
0.4724
Load Ratings (lbs)
Dynamic: 2160
Static: 1030
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 6203-2RS-5/8 ball bearing, expertly engineered for precision applications in both inch and metric sizes. Its robust construction makes it an ideal choice for engineers seeking reliable performance in various machinery. **Key Specifications:** - **Part Number:** 6203-2RS-5/8 - **Series:** 6200 Series - Inches and Metric - **Bore:** 15.875 mm (0.625 in) - **Outer Diameter:** 40 mm (1.5748 in) - **Width:** 12 mm (0.4724 in) - **Material:** Chrome Steel - **Closure Type:** Double Rubber Seal This bearing ensures superior protection against contaminants with its double rubber seals, enhancing durability and longevity. Crafted from high-quality chrome steel, it guarantees precision with an ABEC 1 rating. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
