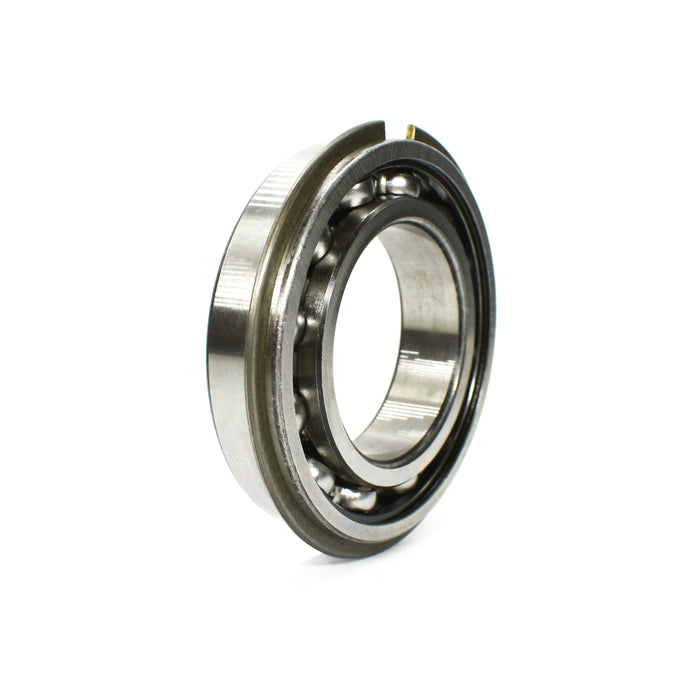

6003NR - Chrome Steel - Open - Radial Ball Bearing - 17mm x 35mm x 10mm

Original price $7.75 - Original price $7.75
Original price $7.75
$7.75
$7.75 - $7.75
Current price $7.75
Part Number: 6003NR
Series: 6000 Series - Metric
Type: Snap Ring
Cage Type: Chrome Steel
Shield Type: Open
Snap Ring: Yes

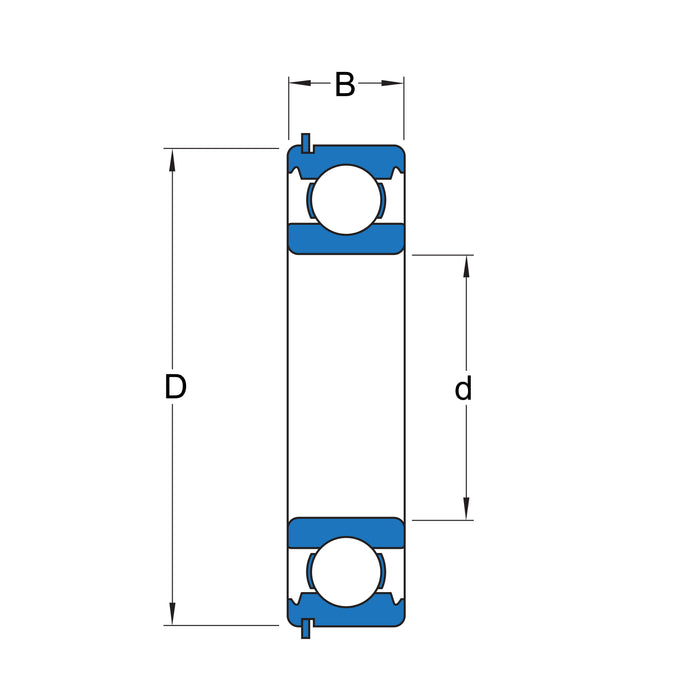

TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
35.0
17.0
10.0
Inches
1.378
0.6693
0.3937
Load Ratings (lbs)
Dynamic: 1350
Static: 740
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

**6003NR Ball Bearing - 6000 Series - Metric** The 6003NR ball bearing combines precision engineering with high-quality materials, making it a reliable choice for various applications. Ideal for engineers seeking durability and performance. - **Part Number**: 6003NR - **Series**: 6000 Series - Metric - **Bore**: 17 mm (0.6693 in) - **Outer Diameter**: 35 mm (1.378 in) - **Width**: 10 mm (0.3937 in) - **Closure Type**: Open - **Material**: Chrome - **Ring Feature**: Snap Ring (EE) Designed for optimal performance, this bearing offers easy lubrication access and superior protection against contamination. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
