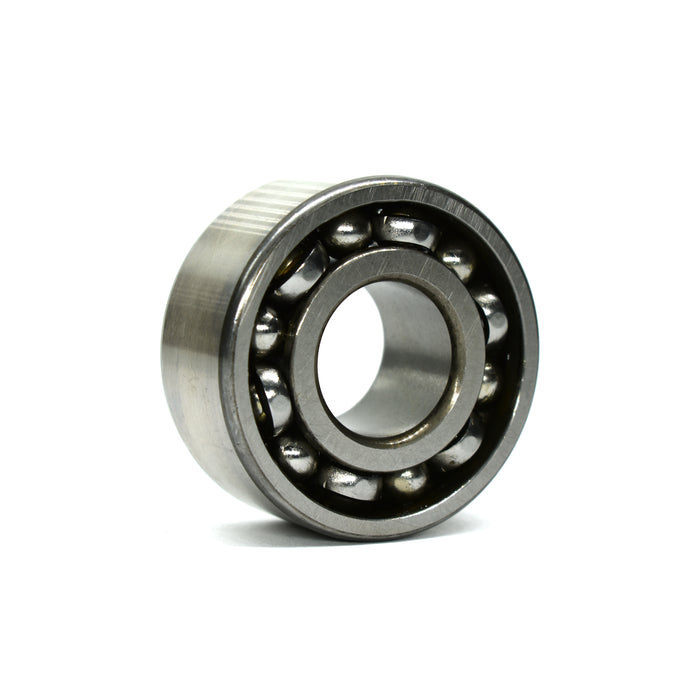

5308 - Chrome Steel - Open - Radial Ball Bearing - 40mm x 90mm x 37mm

Original price $25.95 - Original price $25.95
Original price $25.95
$25.95
$25.95 - $25.95
Current price $25.95
Part Number: 5308
Series: 5300 Series - Double Row Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Open
Snap Ring: No
TECHNICAL SPECIFICATION

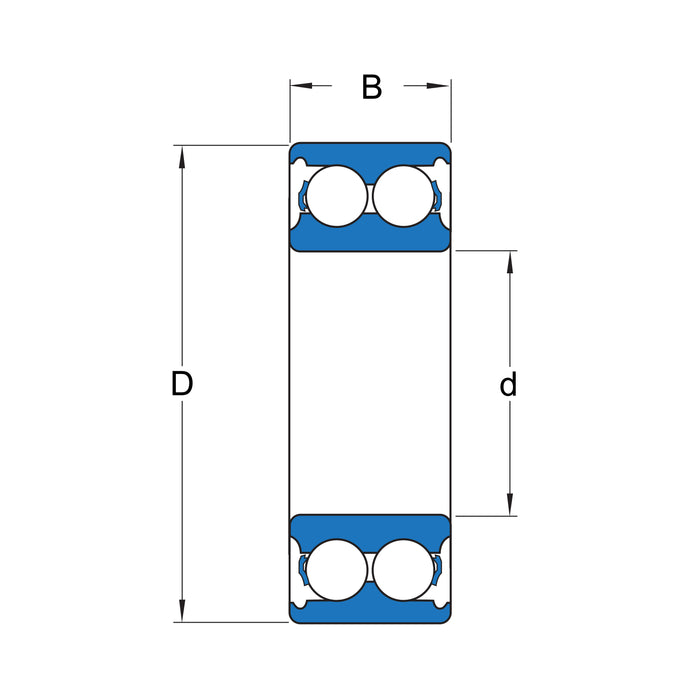

Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
90.0
40.0
36.5
Inches
3.5433
1.5748
1.437
Load Ratings (lbs)
Dynamic: 12360
Static: 9070
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 5308 ball bearing from the renowned 5200 Series - Double Row Metric, designed for precision engineering and durability. **Specifications:** - Part Number: 5308 - Bore: 40 mm (1.5748 inches) - Outer Diameter: 90 mm (3.5433 inches) - Width: 36.5 mm (1.437 inches) Crafted from high-quality chrome, this open ball bearing allows for easy lubrication, ensuring optimal performance. Its robust design makes it suitable for a range of applications. Choose the 5308 bearing for superior quality and reliability. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
