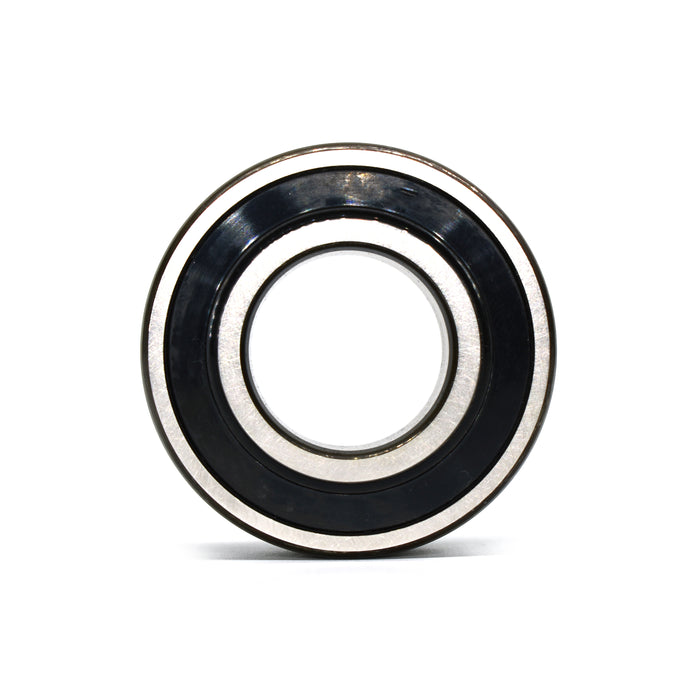

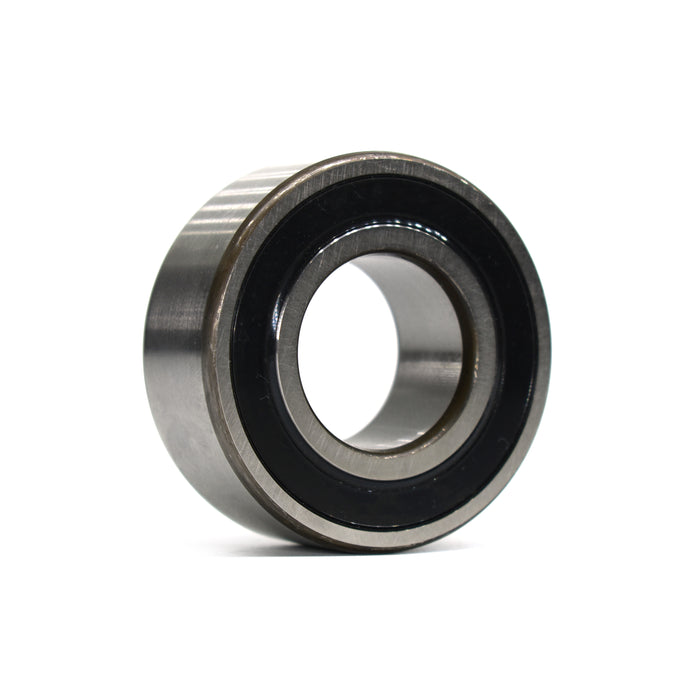

5206-2RS - Chrome Steel - Sealed - Radial Ball Bearing - 30mm x 62mm x 24mm

Original price $13.50 - Original price $13.50
Original price $13.50
$13.50
$13.50 - $13.50
Current price $13.50
Part Number: 5206-2RS
Series: 5200 Series - Double Row Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No
TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
62.0
30.0
23.8
Inches
2.4409
1.1811
0.9375
Load Ratings (lbs)
Dynamic: 5480
Static: 3990
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the 5206-2RS, a high-quality ball bearing from the 5200 Series - Double Row Metric. Engineered for precision, this bearing is ideal for applications requiring reliability and durability. **Specifications:** - **Part Number:** 5206-2RS - **Bore:** 30 mm (1.181 inches) - **Outer Diameter:** 62 mm (2.4409 inches) - **Width:** 23.8 mm (0.9375 inches) - **Material:** Chrome Steel - **Closure Type:** Double Rubber Seal - **Abec Rating:** 0.64 Designed for exceptional performance, the 5206-2RS guarantees superior load capacity while ensuring minimized friction. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
