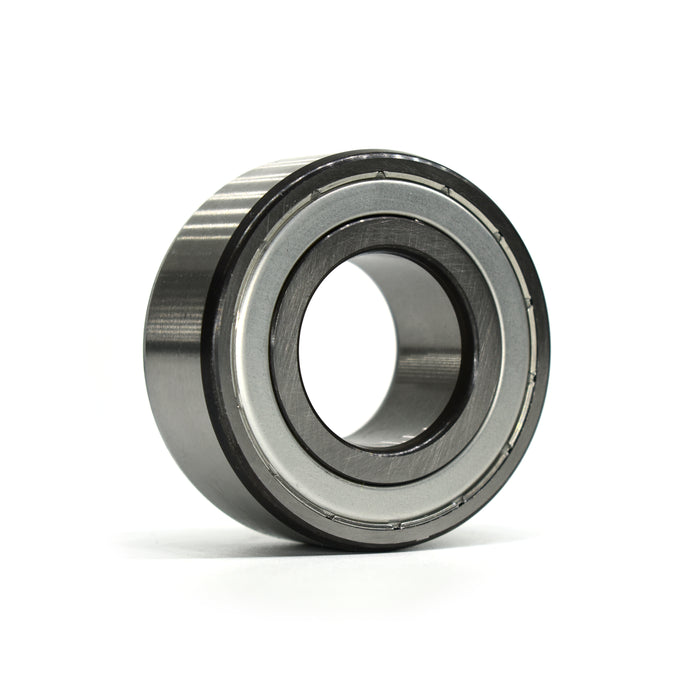

5202ZZ - Chrome Steel - Shielded - Radial Ball Bearing - 15mm x 35mm x 16mm

Original price $6.75 - Original price $6.75
Original price $6.75
$6.75
$6.75 - $6.75
Current price $6.75
Part Number: 5202ZZ
Series: 5200 Series - Double Row Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Shield
Snap Ring: No
TECHNICAL SPECIFICATION

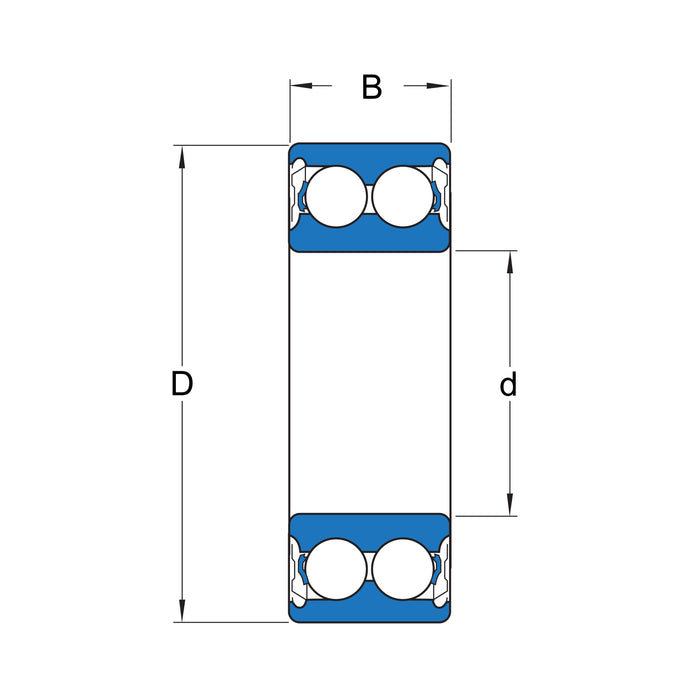

Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
35.0
15.0
15.9
Inches
1.378
0.5906
0.626
Load Ratings (lbs)
Dynamic: 1980
Static: 1320
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the high-performance 5202ZZ bearing from the 5200 Series - Double Row Metric. Engineered for precision, this ball bearing excels in various applications, providing exceptional reliability and efficiency. **Key Specifications:** - **Part Number:** 5202ZZ - **Series:** 5200 Series - Double Row Metric - **Bore Diameter:** 15 mm (0.5906 in) - **Outer Diameter:** 35 mm (1.378 in) - **Width:** 15.9 mm (0.626 in) - **Material:** Chrome - **Closure Type:** Double Shield - **ABEC Rating:** 1 Designed for engineers seeking superior performance, this bearing offers precise engineering and robust construction to fulfill demanding applications. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
