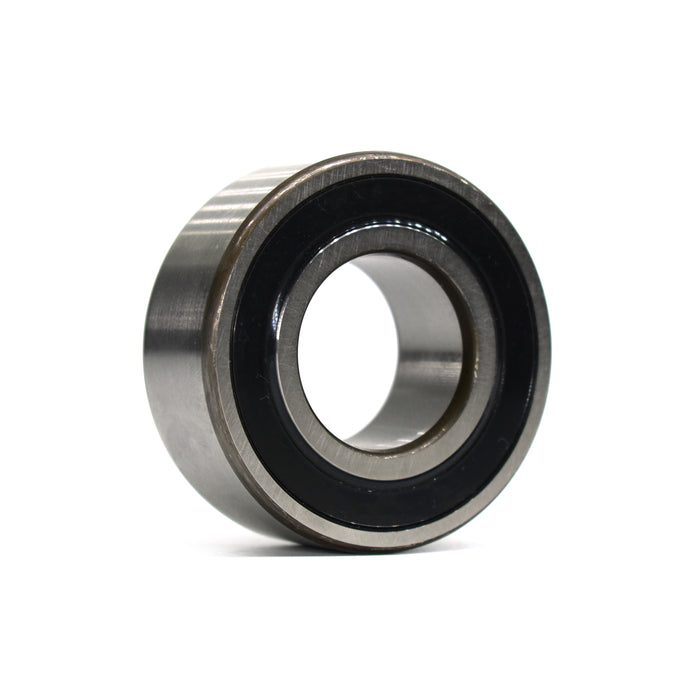

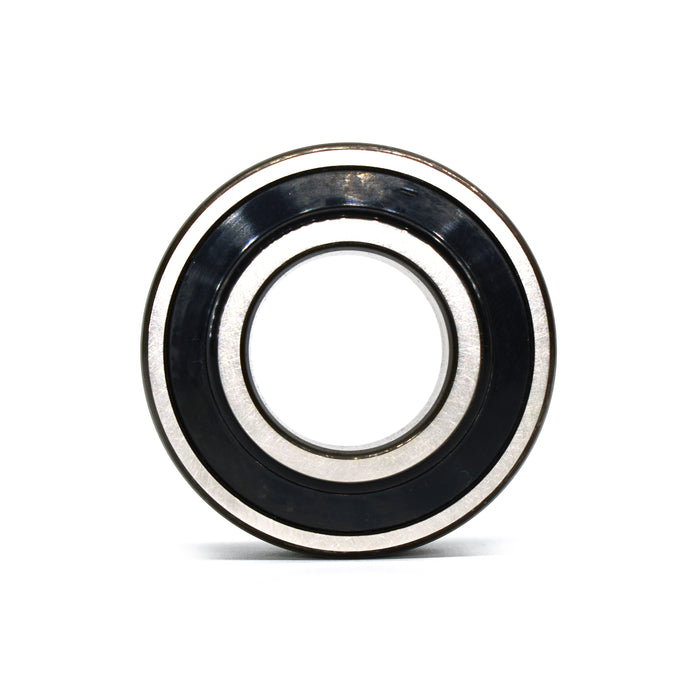

W5203-2RS - Chrome Steel - Sealed - Radial Ball Bearing - 17mm x 40mm x 21mm

Original price $11.50 - Original price $11.50
Original price $11.50
$11.50
$11.50 - $11.50
Current price $11.50
Part Number: W5203-2RS
Series: 5200 Series - Double Row Metric
Type: Straight
Cage Type: Chrome Steel
Shield Type: Double Rubber Seal
Snap Ring: No

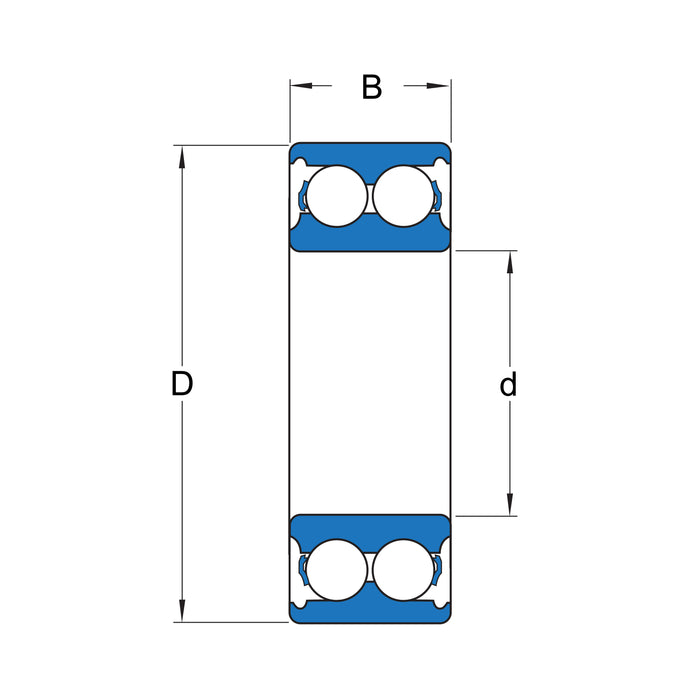

TECHNICAL SPECIFICATION
Dimension
D Outside Diameter
d Inside Diameter
B Width
Metric
40.0
17.0
20.6
Inches
1.5748
0.6693
0.811
Load Ratings (lbs)
Dynamic: 2430
Static: 1600
CONTACT FOR MORE INFORMATION    or call us at (818) 988-1880

Introducing the W5203-2RS Ball Bearing, part of the premium 5200 Series - Double Row Metric lineup. This meticulously engineered bearing is perfect for precision applications, ensuring smooth operation and longevity. **Specifications:** - Part Number: W5203-2RS - Series: 5200 Series - Double Row Metric - Bore: 17 mm (0.6693 in) - Outer Diameter: 40 mm (1.5748 in) - Width: 20.6 mm (0.811 in) - Material: Chrome Steel - Closure Type: Double Rubber Seal - Ring Feature: None With ABEC 1 tolerances, this bearing is designed for exceptional performance in various mechanical applications. Enjoy additional lubrication options from our clean room facility. *If you don’t find the bearing you’re looking for or have special requests, please call us at 1-800-423-9000. We appreciate the opportunity to help you.*
